Application — Configuration

Path: /configuration

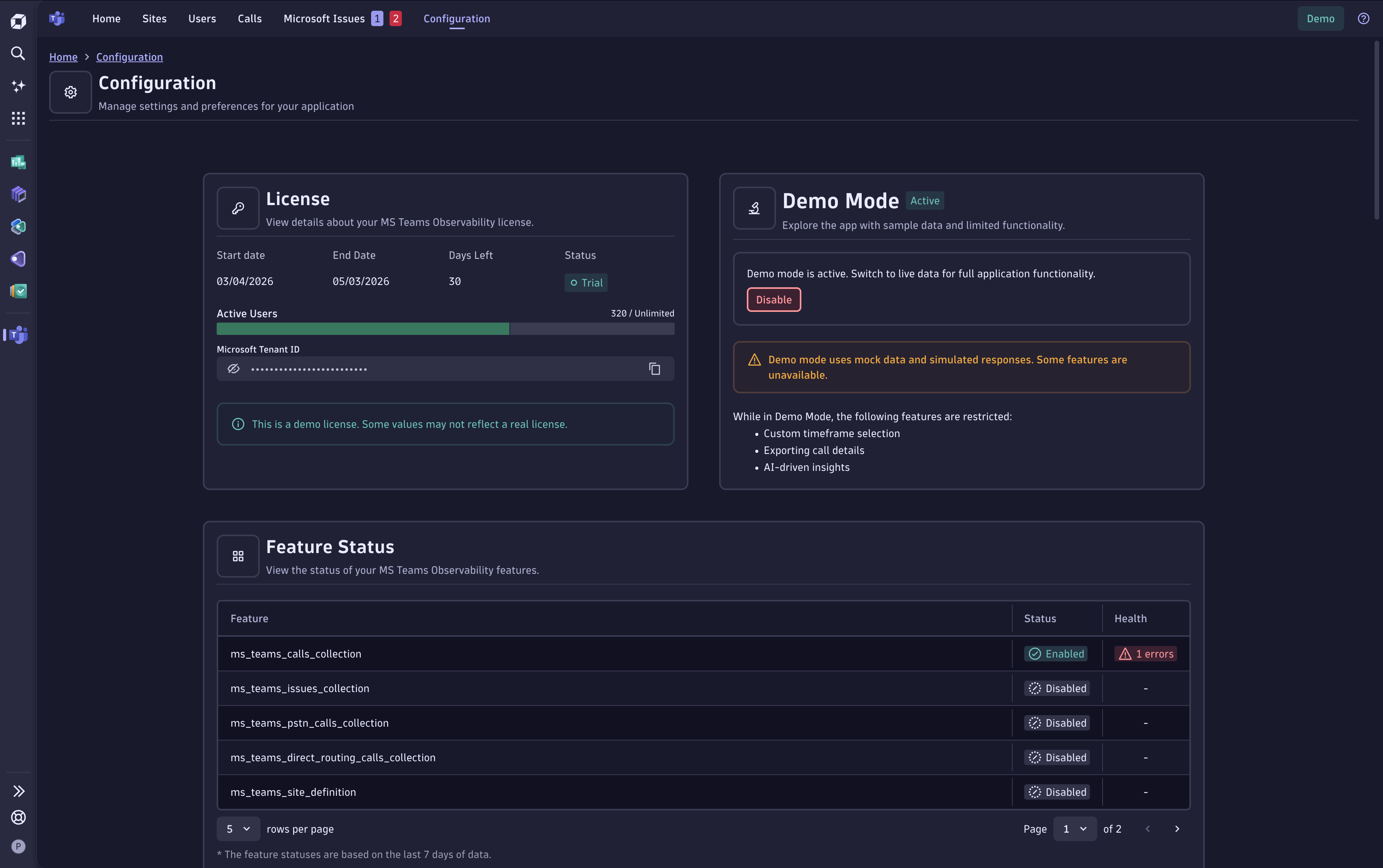

The Configuration page is the central settings hub for the MS Teams Observability app. It contains 12 panels arranged in a two-column grid.

Breadcrumb navigation: Home > Configuration

Panel Layout

Row	Left panel	Right panel
1	License	Demo Mode
2	Feature Status (full width)	—
3	Outgoing Connections (full width)	—
4	Bucket Configuration	OpenPipeline
5	Site File Management (full width)	—

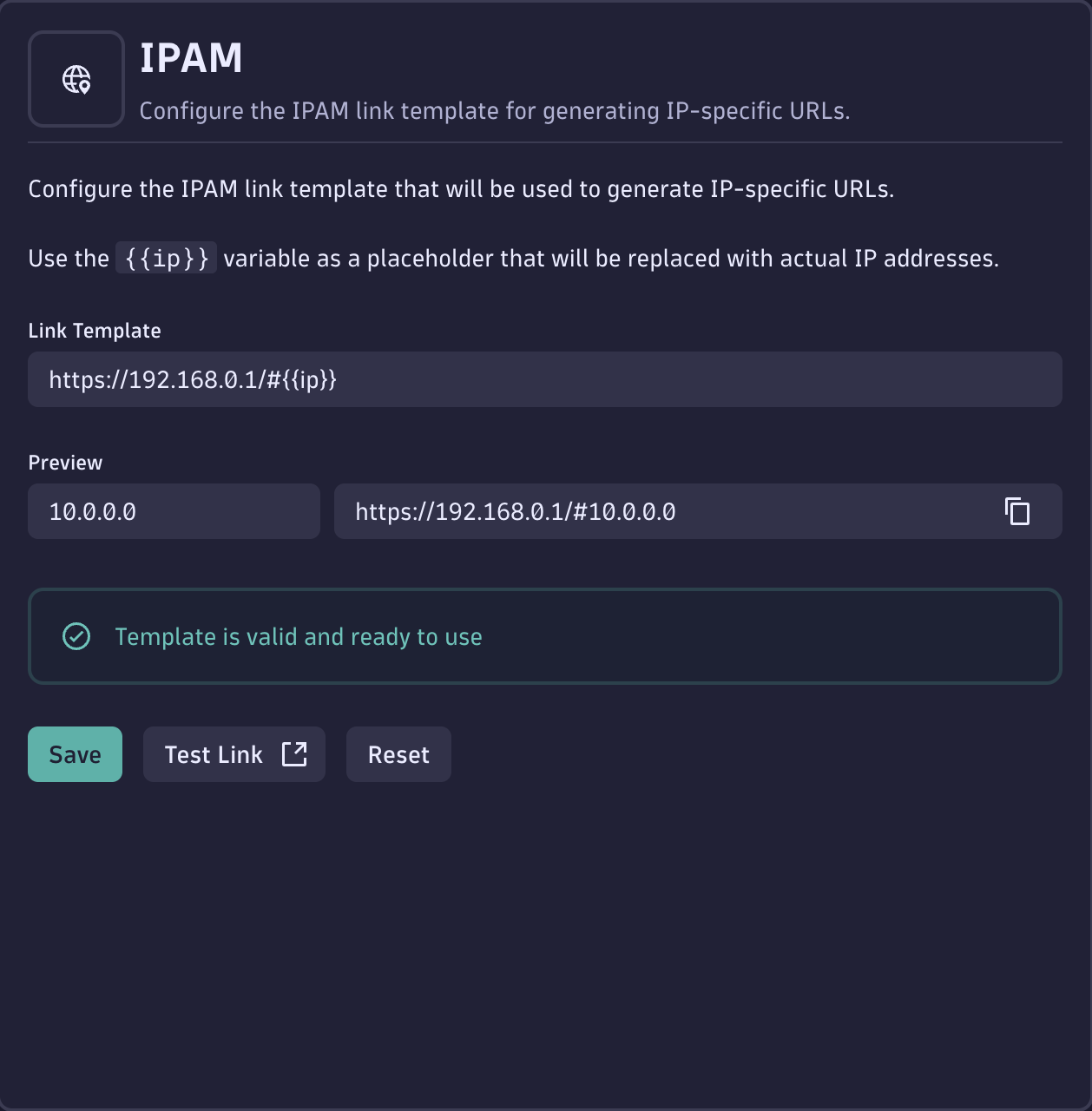

6	IPAM	AI Analysis

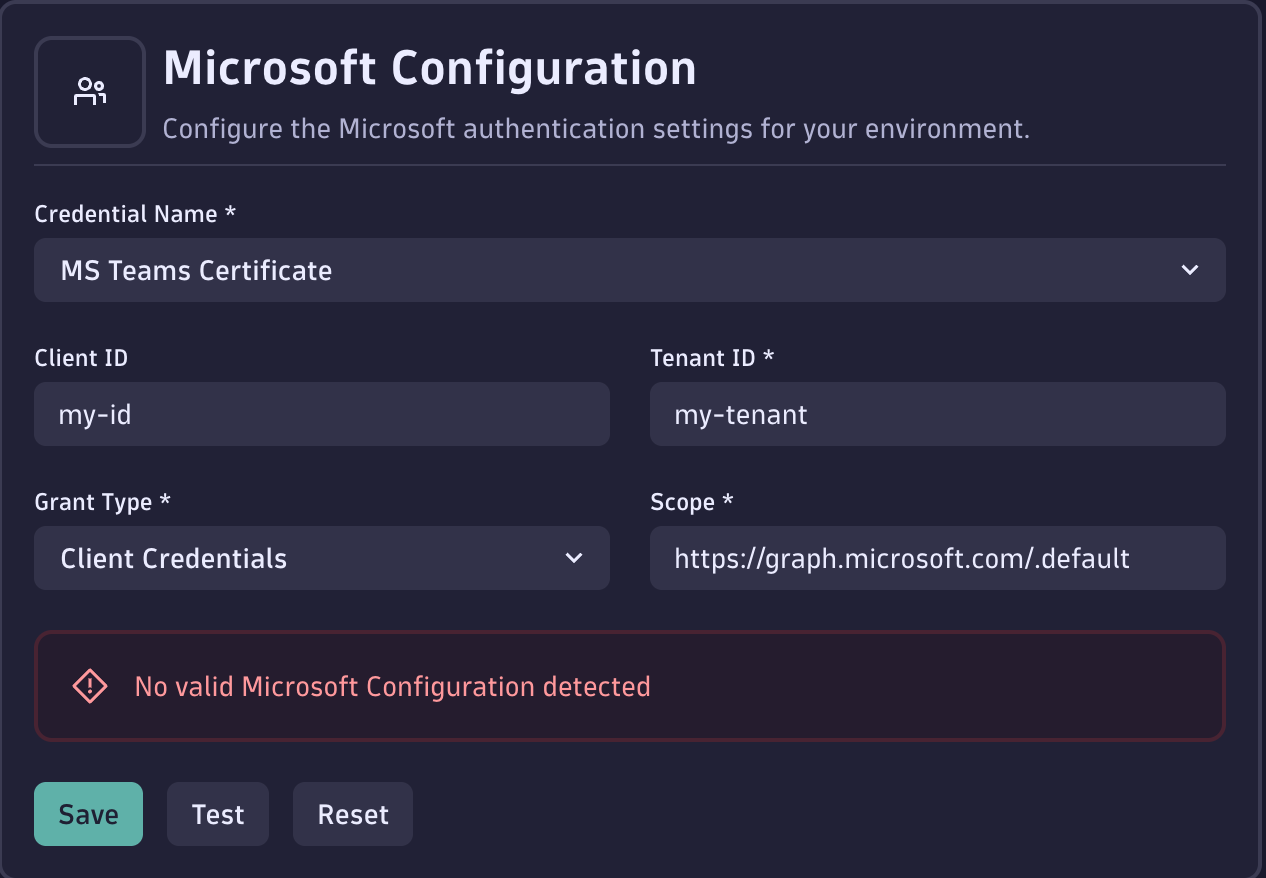

7	Microsoft Configuration	Domains Filter
8	Permissions (full width)	—

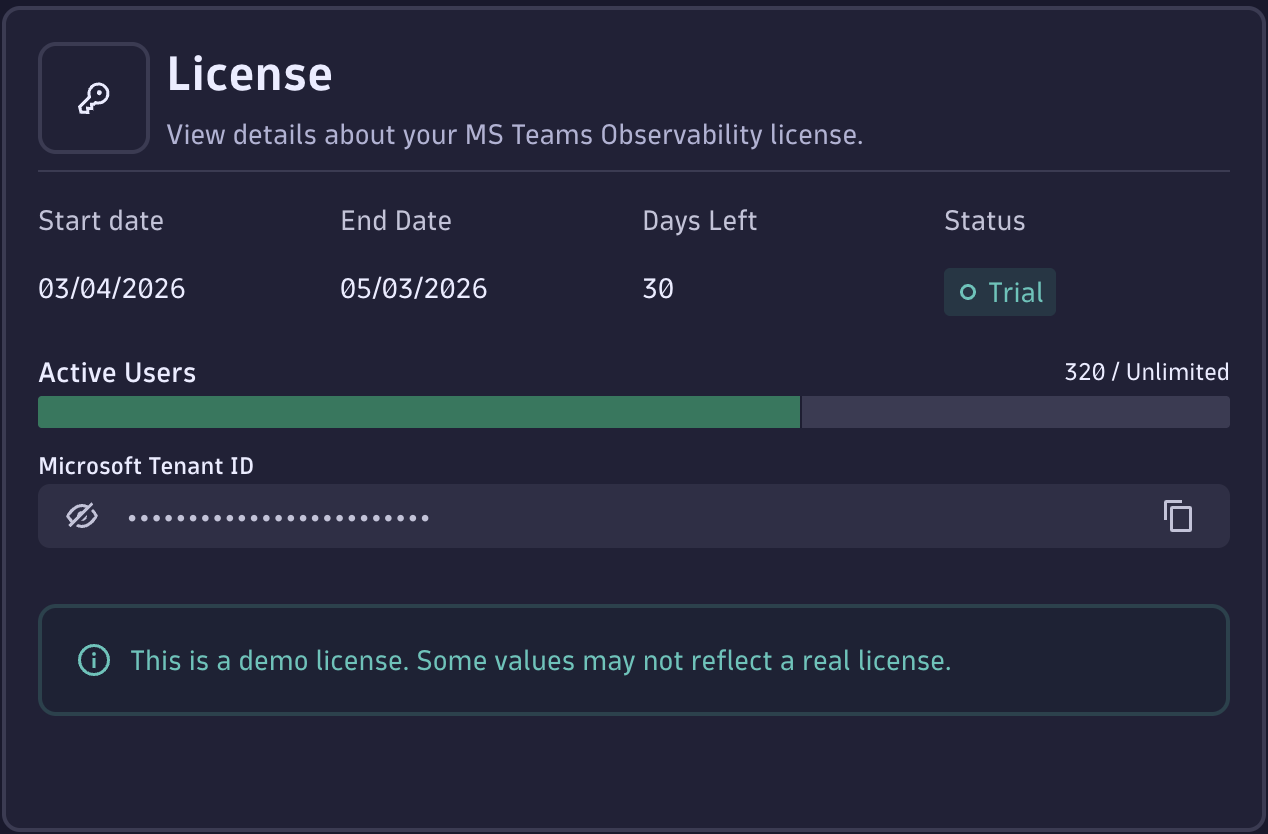

1. License

Purpose: View the status and details of your MS Teams Observability license. This panel is read-only — it shows your current license validity, usage, and tenant association.

For license setup or renewal, see License.

When to check this

At first login — confirm the license is active.
When a license warning banner appears in the app header.
Before expiry — check the remaining days and plan renewal.
When you see “Trial” status — evaluate before the trial expires.

Fields

Field	Description	Interpretation
Start date	License start date (DD/MM/YYYY)	When your license period began
End Date	License expiry date (DD/MM/YYYY)	When the license expires — after this date, the app enters restricted mode
Days Left	Days remaining before expiry	< 30 days: consider renewing. < 7 days: urgent renewal needed.
Status chip	`Trial` (blue), `Active` (green), or `Inactive` (red)	`Trial` = evaluation period. `Active` = valid commercial license. `Inactive` = expired or invalid.
Active Users meter	Current active users vs. maximum allowed. Trial = “Unlimited”.	Stay below 80% of the limit to avoid throttling.
Microsoft Tenant ID	Your tenant ID, masked by default	Click the eye icon to reveal, copy button to copy — useful for support requests.

Banners

Banner	Meaning	Action
Green “Demo license”	Demo Mode is active with a valid demo license	Normal — no action needed
Yellow/Warning	License approaching expiry or usage limit near capacity	Plan renewal or review user count
Red/Critical	License expired, invalid, or usage limit exceeded	Renew immediately or contact Phenisys support

Error state

If the license cannot be loaded (network issue, backend unavailable), all fields show “Error”. Check that the collector is running and can reach the license validation endpoint.

Actions

Action	Description
Eye icon	Toggle visibility of the masked Tenant ID
Copy button	Copy the Tenant ID to clipboard

Troubleshooting

Symptom	Likely cause	Solution
License shows “Inactive”	License expired or invalid	Check the expiry date. Contact Phenisys for renewal.
All fields show “Error”	License server unreachable	Verify the collector can reach `https://license.phenisys.com` (check Outgoing Connections).
Active Users meter shows 0	No data collected yet	Check Feature Status to see if the collector is running.
Tenant ID not matching	Wrong license file uploaded	Re-upload the correct license file for your tenant.

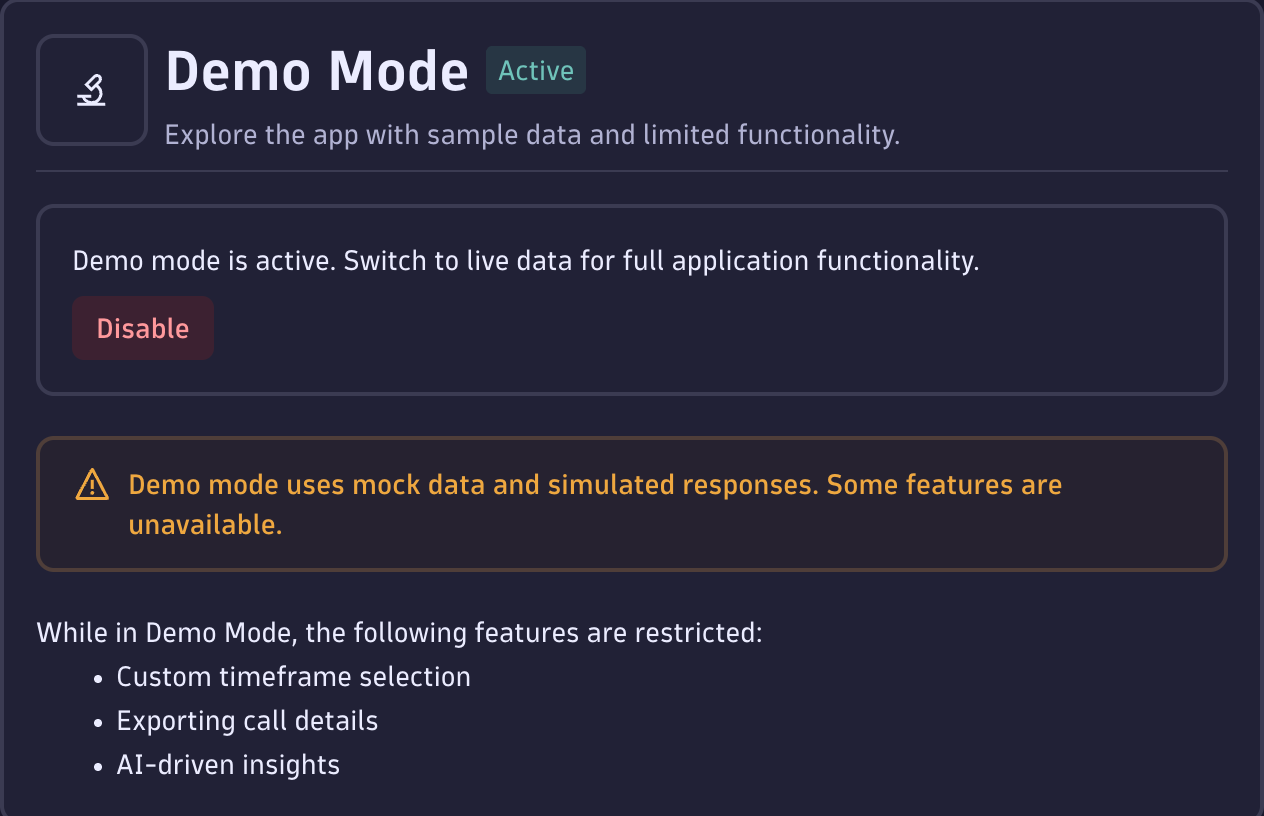

2. Demo Mode

Purpose: Enable or disable Demo Mode, which replaces all live data with built-in sample data. Useful for:

Evaluating the app without a collector or Microsoft Teams data
Demonstrations to stakeholders or clients
Testing UI behavior without affecting production data

Current status

A chip next to the title shows the current state: Active (green) or Inactive (grey).

Buttons

Button	Appears when	What happens
Enable	Demo Mode is off	Opens a confirmation modal. Once confirmed, all app pages switch to mock data.
Disable	Demo Mode is on	Opens a confirmation modal. Once confirmed, the app returns to live data mode.

What changes when Demo Mode is active

Feature	Available in Demo Mode?
Browsing all pages (Home, Sites, Calls, Users, Issues)	✅ Yes — with mock data
Interacting with UI (filters, tables, charts)	✅ Yes
Custom timeframe selection	❌ Restricted — only the preset timeframe works
Exporting call details	❌ Restricted
AI-driven insights	❌ Restricted — requires live Microsoft Graph data

How to tell Demo Mode is active

A green “Demo” banner appears in the app header
The Configuration page shows the Demo Mode chip as Active (green)
Mock data replaces all live data — the sample calls and users resemble realistic but fictional data

Troubleshooting

Symptom	Likely cause	Solution
Demo Mode won’t disable	Network issue preventing license validation	Check Outgoing Connections for `license.phenisys.com` reachability.
Mock data looks the same after enabling	Page cache not refreshed	Manually refresh the page or navigate between tabs.

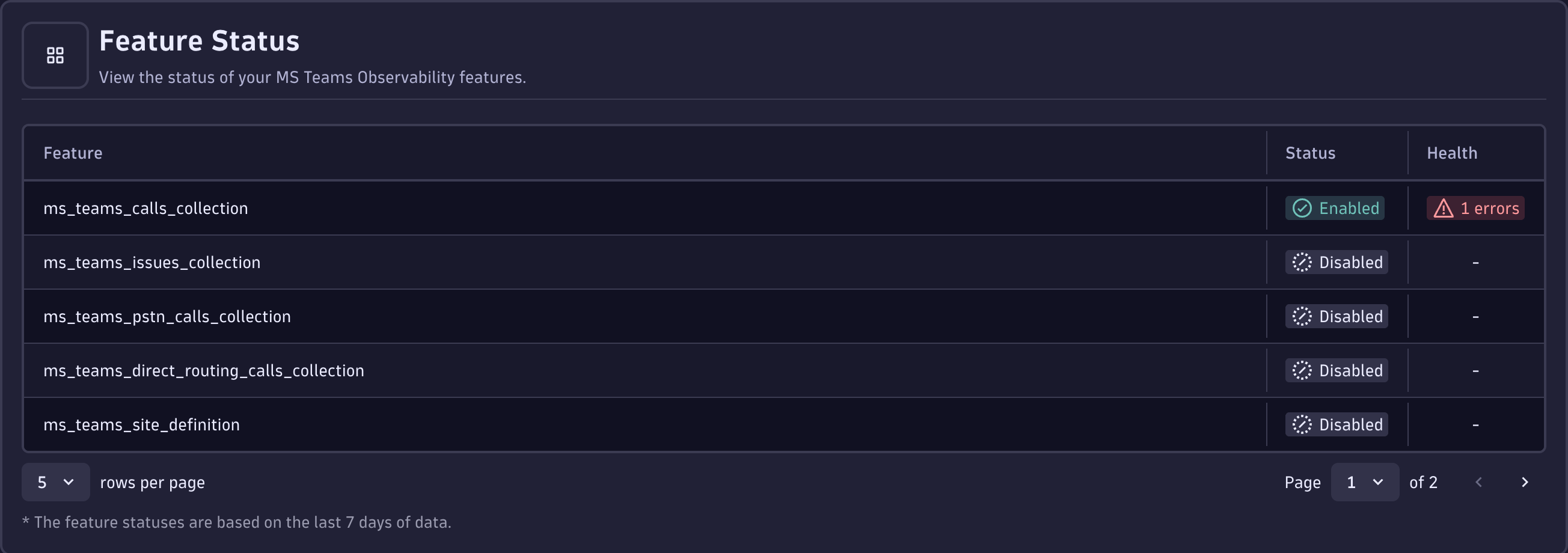

3. Feature Status

Purpose: View the health status of each data collection feature from the MS Teams Observability agent over the last 7 days. Use this to verify that the collector is running and all expected data sources are active.

When to check this

After installing or upgrading the collector — confirm all features are enabled.
When pages show no data — verify the relevant collector feature is running without errors.
Routine health check — ensure all collection features are green.

Table

Column	Description	Color coding
Feature	Name of the collection feature (e.g., Calls, PSTN, Auto Attendant)	—
Status	`Enabled` (green) or `Disabled` (grey)	Green = actively collecting. Grey = feature not configured in the collector.
Health	`No errors` (green) or `X errors` (red) — only shown for enabled features	Red = check the collector logs for the error. Green = no issues in the last 7 days.

Cell action

Right-click the Health column → “Open details with” → sends the error log query to a Dynatrace app for deeper investigation.

Empty state

“No features found. Please ensure that the MS Teams Observability Agent is properly configured and running.”

Pagination

5 / 10 / 20 rows per page.

Troubleshooting

Symptom	Likely cause	Solution
All features show “Disabled”	Collector not running or not configured	Verify the collector service is started and the config file has features enabled.
A specific feature shows errors	Feature-specific issue (e.g., Graph API throttling, invalid credentials)	Right-click the health cell → “Open details with” to see the error logs.
No features listed at all	No collection health data in the last 7 days	Check that the collector is running and can reach Dynatrace. Check Outgoing Connections.

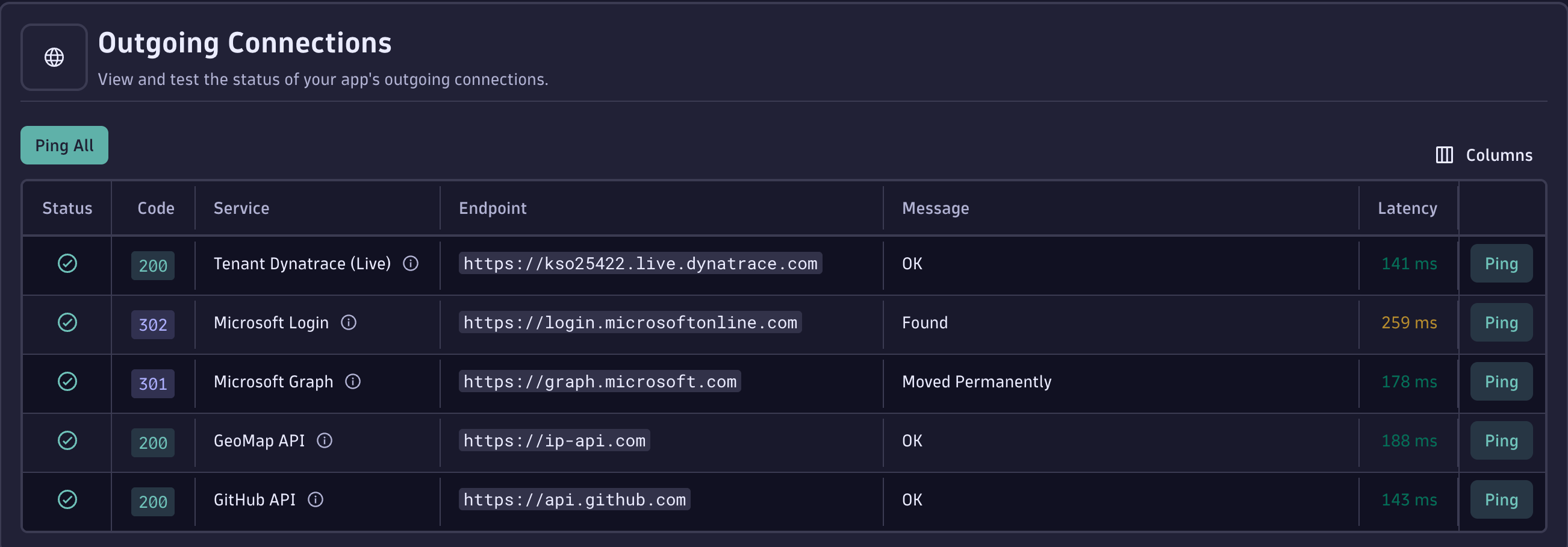

4. Outgoing Connections

Purpose: Verify that the app can reach all external services it depends on. This is a diagnostic tool for troubleshooting connectivity issues — if a feature isn’t working, check here first.

When to check this

A feature isn’t working (e.g., AI Analysis returns no response, license status shows error).
After network changes (firewall rules, proxy changes, DNS updates).
Routine health check during maintenance.

Table

Column	Description	Color coding
Status	Connection status icon	Green = reachable. Red = unreachable. Grey = not yet tested.
Code	HTTP response code chip (e.g., `200`, `401`, `500`)	`200`-`399` = green. `400`+ = red or orange depending on severity.
Service	Name of the service. Hover the information icon for a description.	—
Endpoint	The URL being tested	—
Message	Human-readable status from the last ping	—
Latency	Round-trip latency in ms	Color-coded by performance thresholds.

Endpoints tested

Endpoint	Purpose	Expected code
`login.microsoftonline.com`	OAuth2 token acquisition	`200` (connected, token exchange works) or `401` (connected, but test query rejected — normal)
`graph.microsoft.com`	Microsoft Graph API for call records	`401` is normal here (the test doesn’t have a valid bearer token)
`api.openai.com` or equivalent	AI analysis API endpoint	`401` is normal (test call without auth)
`license.phenisys.com`	License validation server	`200` if the license is valid
`github.com` / `api.github.com`	Release version check	`200`

Note: A 401 (Unauthorized) status is often normal for services that require authentication — the test verifies that the endpoint is reachable, not that credentials are valid. For credential validation, use the Test button in the relevant panel (Microsoft Configuration, AI Analysis).

Actions

Action	Description
Ping (per row)	Tests that specific endpoint individually
Ping All (toolbar)	Tests all endpoints simultaneously — runs every test in parallel

Troubleshooting

Symptom	Likely cause	Solution
`login.microsoftonline.com` shows red/unreachable	Firewall blocking Microsoft login	Add `login.microsoftonline.com` to the firewall allowlist. Check proxy settings.
`graph.microsoft.com` unreachable	Microsoft Graph API blocked	Verify network rules allow `graph.microsoft.com`. The collector also needs this.
`license.phenisys.com` unreachable	License validation server blocked	Add `license.phenisys.com` to the allowlist. Without this, the license cannot be validated.
`api.openai.com` unreachable	OpenAI API blocked (if using OpenAI)	Add the AI provider’s endpoint to the allowlist.
All endpoints red	General network issue	Check DNS resolution, proxy configuration, and internet connectivity from the Dynatrace environment.

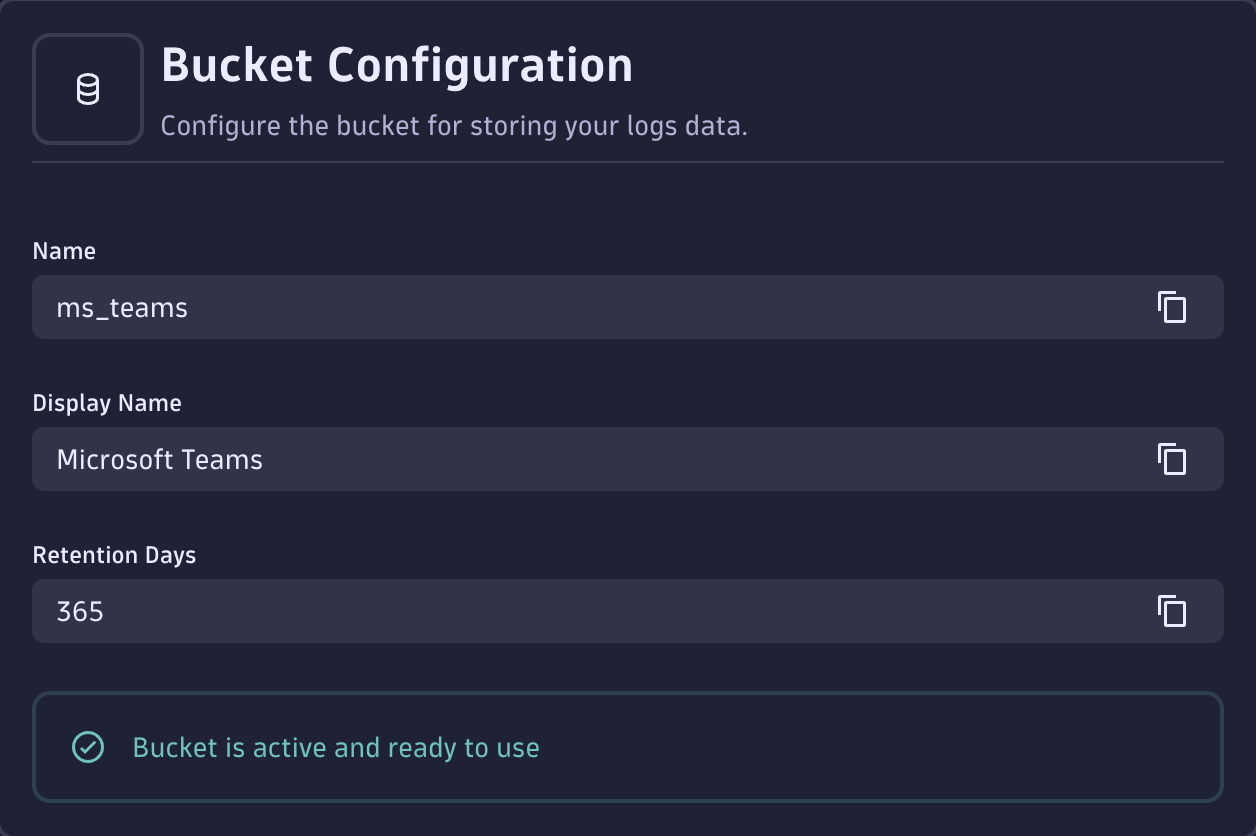

5. Bucket Configuration

Purpose: Configure the Dynatrace Grail storage bucket where the collector writes all MS Teams log data. The app reads from this bucket to display calls, sites, users, and issues.

This is the foundation of the data pipeline — without a valid bucket, every page shows empty data.

When to configure this

First-time setup of the MS Teams Observability app.
Bucket was deleted or needs to be recreated.
Retention period needs adjustment.

How it works

The app looks for a bucket named ms_teams (by default) when it starts:

State	What you see	What to do
Loading	Spinner	Wait — the app is checking bucket existence
Bucket exists	Bucket details: name, retention days, status	Everything is fine. No action needed.
Bucket not found	A creation form	Fill in the fields below and create it
Error	Warning with error message	Check permissions (see below)

Creating a bucket

When the bucket doesn’t exist, a form appears:

Field	Required	Description	Recommendation
Display Name	No	Human-readable name for the bucket	Leave empty to use the default
Retention Days	Yes	How many days logs are retained in Grail before automatic deletion	30 days is a good starting point. Longer retention (90, 365) increases storage costs.

Retention Days — what to choose

Duration	Use case
7 days	Minimal — troubleshooting only, no historical analysis
30 days	Good default — enough for monthly reporting
90 days	Quarterly analysis — higher storage cost
365 days	Annual trend analysis — significant storage cost

Permissions required

The app needs these permissions to manage the bucket:

storage:bucket-definitions:read — check if bucket exists
storage:bucket-definitions:write — create the bucket

Troubleshooting

Symptom	Likely cause	Solution
”You don’t have the required permissions” (403)	User token missing `storage:bucket-definitions:read`/`write` scopes	Contact your Dynatrace administrator to add these OAuth scopes to the app.
Bucket not found after creation	Bucket name differs from what the app expects	The app uses the name from settings. Check that the created bucket matches the expected name.
All pages show no data	Bucket exists but is empty or collector hasn’t written yet	Verify the collector is running and writing to the correct bucket. Check Feature Status.

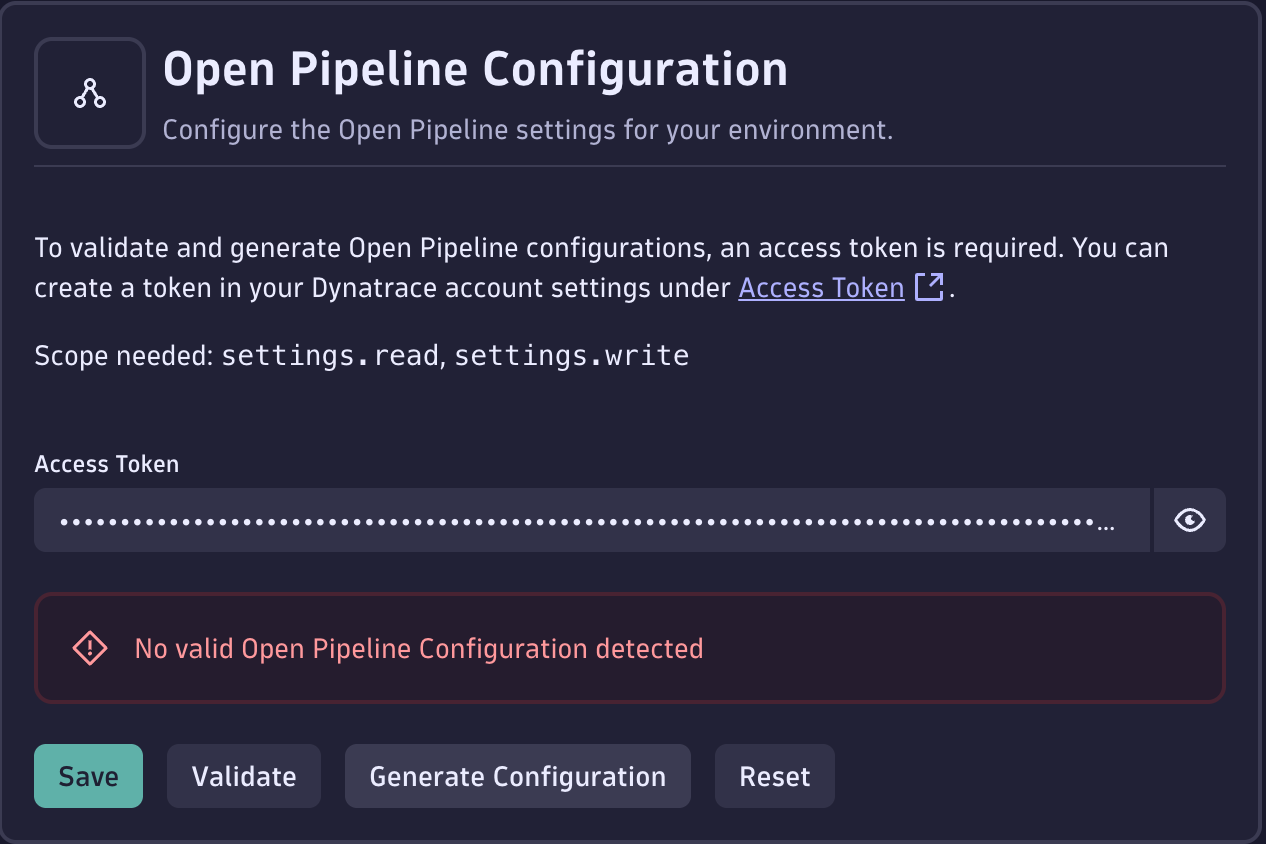

6. OpenPipeline

Purpose: Configure the OpenPipeline data ingestion pipeline that automatically routes MS Teams log data from the collector into the correct Grail bucket and applies data processing rules (masking, enrichment, routing).

The OpenPipeline acts as the data traffic controller — it receives logs from the collector via the Dynatrace API and ensures they land in the right bucket with the right structure.

When to configure this

First-time setup of the app — you need OpenPipeline to route collector data into Grail.
Pipeline was reset or needs regeneration.
Data processing rules need to be updated (field masking, log source routing).

How to set it up

The panel requires a Dynatrace API token with specific scopes. Once configured, you can either validate the existing pipeline or generate a new one automatically.

Fields

Field	Required	Description	Default
Access Token	Yes	Dynatrace API token with `settings.read` and `settings.write` scopes, stored in a masked input field. The token must belong to a user with permissions to create and manage OpenPipeline configurations.	None

How to create the API token

In Dynatrace, go to Access tokens → Create new token.
Under Captures and processors, select these scopes:
- settings.read — read existing pipeline configuration
- settings.write — create/update pipeline configuration
Give the token a recognizable name (e.g., MS Teams OpenPipeline).
Copy the generated token and paste it into the Access Token field.
Click Validate to confirm the token works.

Validation

Indicator	Status	Message
Green	Valid	”Open Pipeline Configuration is valid”
Yellow	Validating	”Open Pipeline Configuration is being validated”
Red	Invalid	”No valid Open Pipeline Configuration detected”

Buttons

Button	When to use	What happens
Save	After entering the token	Persists the token.
Validate	After saving, to verify the pipeline	Tests the token and checks if the OpenPipeline configuration exists and is correct.
Generate Configuration	After validation, if no pipeline exists	Automatically generates and deploys a complete OpenPipeline configuration that routes MS Teams log sources, masking rules, and retention policies. This is the recommended way to set up — no manual pipeline editing needed.
Reset	To clear the saved token	Removes the stored token from settings.

Generate Configuration — what it does

When you click Generate Configuration, the app automatically creates:

Ingestion rules that route data from the collector endpoints to the correct Grail bucket
Processing rules for log source classification (routing each MSTeams_* log source to the right bucket field)
Field masking rules (optional, if configured)
Default retention matching your bucket configuration

This means you don’t need to manually configure the OpenPipeline in the Dynatrace UI — the app does it for you.

Impact on other pages

Page	Effect when configured
All data pages (Home, Calls, Sites, Users, Issues)	Data flows correctly from the collector to Grail. Without this, pages show empty data.

Troubleshooting

Symptom	Likely cause	Solution
”No valid Open Pipeline Configuration detected”	Token is missing, invalid, or pipeline not yet generated	Generate the configuration using the Generate Configuration button.
Validation fails after saving token	Token lacks `settings.read` scope	Check the token scopes in Dynatrace → Access tokens.
”Failed to generate configuration”	Token lacks `settings.write` scope	Add `settings.write` scope to the token.
Data flowing but not appearing in app	Pipeline rules not matching log sources	Re-generate the configuration. Check Feature Status for collector health.

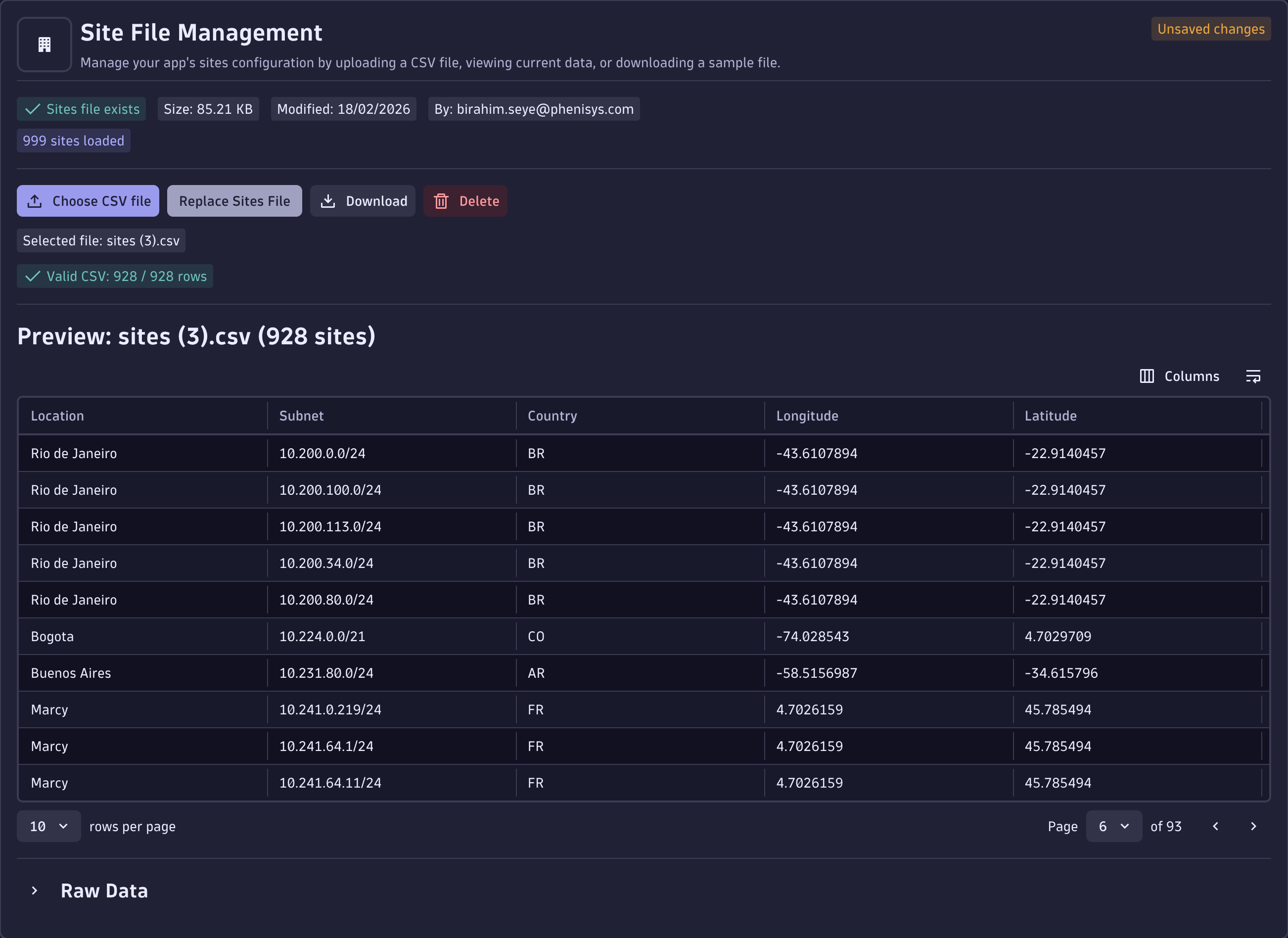

7. Site File Management

Purpose: Upload and manage the CSV file that maps network subnets to site locations (used on the Sites page).

File Status Area

Chip	Description
”Sites file exists” (green)	A file is currently loaded
”No sites file” (grey)	No file has been uploaded
Size / Modified / By	File metadata
”X sites loaded” (blue)	Number of active site entries

Actions

Button	Description
Choose CSV file	Opens file picker
Upload / Replace Sites File	Uploads or replaces the file (enabled when validation passes)
Use Default Site	Uploads a default one-row site file
Download	Downloads the current file as `sites.csv`
Delete	Deletes the current file (no confirmation)

Use Default Site behavior

The Use Default Site action writes the following default entry:

subnet,location,country,latitude,longitude
0.0.0.0/0,Default,xx,0,0

If existing site data is already present, a confirmation modal is shown before replacement.

CSV File Format

subnet,location,country,latitude,longitude
10.64.0.0/24,Paris,FR,48.8588255,2.2646343
10.64.1.0/24,Berlin,DE,52.5200066,13.404954

Column	Type	Description
`subnet`	CIDR	Network subnet
`location`	String	Human-readable location name
`country`	String	Country code
`latitude`	Number	-90 to 90
`longitude`	Number	-180 to 180

Validation

After selecting a file, each row is automatically validated:

All rows valid: green chip “Valid CSV: X/Y rows”
Errors exist: red chip “Invalid CSV: N error(s), X/Y valid rows”
Up to 5 errors shown inline; a “Copy Errors” button copies all errors.

Permissions Required

The app needs these Dynatrace storage permissions to manage the sites file:

storage:files:read
storage:files:write
storage:files:delete

8. IPAM

Purpose: Configure a URL template for linking IP addresses to your IP Address Management (IPAM) solution. When configured, right-clicking any IP address in the Sites or Call Overview tables shows a “Lookup IPAM” option, opening your IPAM system to that specific IP.

This saves time during troubleshooting — instead of copying an IP and searching for it manually, you click once and jump directly to the right IP in your IPAM.

When to configure this

You use an IPAM solution (e.g., SolarWinds, Infoblox, phpIPAM, NetBox).
You frequently troubleshoot network issues and need to identify switch ports, VLANs, or device names from IP addresses.
Optional — the app works fine without this; only the IPAM lookup feature is unavailable.

Fields

Field	Required	Description	Default
Link Template	Yes	URL template containing the `{{ip}}` placeholder. When you right-click an IP in the app, `{{ip}}` is replaced with the actual IP address. Must be a valid `http://` or `https://` URL.	None

Example template: https://ipam.company.com/ip/{{ip}}/details

This would turn IP 10.64.0.15 into: https://ipam.company.com/ip/10.64.0.15/details

Preview

After saving the template, a preview section appears:

Enter a test IP (e.g., 10.0.0.1) in the preview input.
The resolved URL is displayed immediately.
Click Copy to copy the preview URL.
Click Test Link to open the preview URL in a new browser tab.

Validation

Indicator	Status	Message
Green	Valid	”Template is valid and ready to use”
Yellow	Warning	”Contains `{{ip}}` but has validation errors”
Red	Invalid	”Template must contain the `{{ip}}` variable”

Buttons

Button	Enabled when	Description
Save	Template is valid and contains `{{ip}}`	Saves the IPAM link template
Test Link	Template is valid	Opens the resolved preview URL in a new tab — use this to verify the template works
Reset	Always	Clears the saved IPAM link

Where IPAM lookup appears

Page	Context
Sites	Right-click any IP in the Network Statistics table or the Site Inventory
Call Overview	Right-click any IP in the Streams Information table (any IP column)

Troubleshooting

Symptom	Likely cause	Solution
”Template must contain the `{{ip}}` variable”	URL doesn’t include `{{ip}}`	Add `{{ip}}` in the URL where the IP should appear (e.g., `https://ipam.../search?q={{ip}}`).
”Link must be a valid URL”	URL is malformed or missing protocol	Ensure the URL starts with `http://` or `https://`.
”Lookup IPAM” doesn’t appear on right-click	Template not saved or invalid	Check that the template is saved and shows a green validation indicator.
Test Link opens a blank page	IPAM URL is incorrect or unreachable	Verify the template URL is correct by pasting the preview URL directly in a browser.

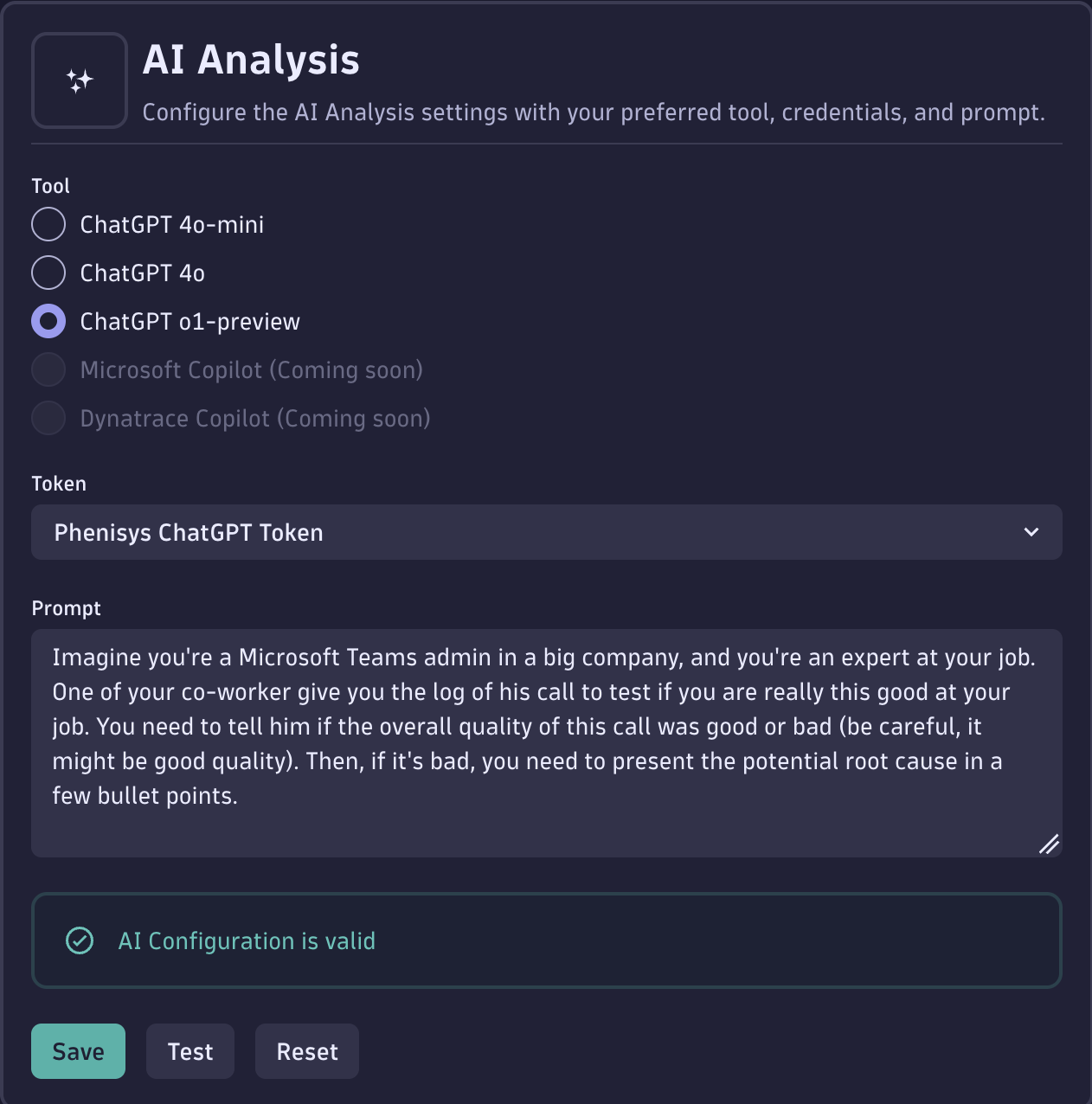

9. AI Analysis

Purpose: Configure the AI tool used to generate root cause analysis on the Call Overview page. The AI analyzes stream metrics (RTT, jitter, packet loss, codec, protocol) and participant data to identify the cause of quality degradation — for example, detecting that high jitter on a specific participant’s subnet is the root cause.

The AI panel appears as a detail view sidebar on the Call Overview page, accessible via the actions menu. Once configured, click a call ID, open the AI panel, and ask questions like “What caused the poor quality?” or “Summarize the call.”

When to configure this

You want automated root cause analysis for poor-quality calls.
You have an OpenAI or Anthropic API key stored in the Dynatrace vault.
Microsoft credentials must also be configured (panel 10) — the AI context includes raw call details fetched from the Microsoft Graph API.

Fields

Field	Required	Description	Default
API compatibility	Yes	Determines the API format. Choose OpenAI for models hosted by OpenAI (GPT-4o, GPT-4o-mini) or Anthropic for Claude models hosted by Anthropic.	`OpenAI`
Base URL	Yes	Pre-filled automatically when you select the API compatibility. Only change this if you are using a proxy or compatible endpoint (e.g., Azure OpenAI, self-hosted LLM with OpenAI-compatible API). Must be a valid URL ending in `/v1`.	`https://api.openai.com/v1` (OpenAI) / `https://api.anthropic.com/v1` (Anthropic)
Model	Yes	The model name to use. Enter it directly as text, or click List to fetch available models from the API (requires a valid token and base URL first). After fetching, a dropdown replaces the text input for easier selection.	`gpt-4o-mini`
Token	Yes	Select a Dynatrace vault credential of type Token that stores your API key. The vault must contain the API key for the provider (OpenAI or Anthropic). Credentials are managed in the Dynatrace platform — see Managing credentials in Dynatrace.	None
System Prompt	Yes	The system prompt sent to the AI at the start of every analysis. It defines the AI’s role, tone, and scope. The pre-filled prompt (see below) is a good default for most environments. Resize the text area vertically.	Pre-filled with the default prompt

How to set up the Token (step by step)

In Dynatrace, go to Settings → Credentials (or Vault).
Create a new credential of type Token.
Paste your OpenAI or Anthropic API key as the token value.
Give it a recognizable name (e.g., OpenAI API Key).
Back in the AI Analysis panel, select this credential in the Token dropdown.

Using the “List” button

Click List after selecting a Token and Base URL — the app calls the API provider’s model list endpoint and populates a dropdown. This avoids typos in model names. If your provider doesn’t support model listing, simply type the model name in the text input and click Save.

Default System Prompt

You are a Microsoft Teams call quality analyst. Your sole expertise is diagnosing issues
in Teams call data (call records, stream details, participant metrics, network paths).

RULES:
- Answer only questions related to the Teams call data provided in this conversation.
- If asked anything outside this scope, reply: "I can only answer questions about the
  Teams call data in this analysis."
- For the first message of a conversation: give a very brief summary (2-3 sentences) of
  the overall call quality and key findings, then ask what specific aspect the user would
  like to investigate.
- For subsequent messages: answer directly and concisely. Use bullet points where
  appropriate.
- No emojis.
- Use technical terms appropriate for IT professionals, developers, and telecom
  consultants (RTT, jitter, packet loss, MOS, subnet, relay, protocol, etc.).
- When identifying issues, include specific metrics and thresholds where relevant.
- If the call quality is good, state it clearly and briefly.
- If data is insufficient to answer, say so rather than guessing.

You can customize this prompt to match your organization’s tone or to add domain-specific context. For example, you could add: “Focus on network-related issues first, then device issues.”

What happens when you ask the AI

The app collects all call data (participants, streams, geolocations, metrics) from the current Call Overview.
It sends this data along with your question to the configured AI endpoint.
The AI analyzes the data and returns a Markdown-formatted answer.
Each conversation is cached per call ID — navigating away and back preserves the chat.

Validation

Indicator	Status	Message
Green	Valid	”AI Configuration is valid”
Yellow	Testing	”AI Configuration is being tested”
Red	Invalid	”No valid AI Configuration detected”

Auto-validation runs on page load if all fields are already saved.

Buttons

Button	When to use	What happens
Save	After entering or modifying any field	Persists the configuration. A success or failure toast appears.
Test	To verify the configuration works	Calls the AI endpoint with a minimal test. On failure, a toast shows the first 80 characters of the error, with a Copy Details button for troubleshooting.
Reset	To clear all settings	Resets every field to its default value, including the prompt. A confirmation toast appears.

Impact on other pages

Page	Effect when configured
Call Overview	An “AI Analysis” button appears in the actions menu. Clicking it opens the chat sidebar with analysis of that specific call.
Configuration	The panel shows a green “AI Configuration is valid” indicator.

Troubleshooting

Symptom	Likely cause	Solution
”No valid AI Configuration detected”	Token is missing, invalid, or expired	Check the vault credential. Test with the Test button.
Test passes but AI doesn’t respond on Call Overview	Microsoft credentials not configured	Configure panel 10.
”Failed to fetch models”	API key permissions or network restriction	Verify the API key has model listing permissions. Check that `Base URL` is reachable from your Dynatrace environment.
AI responses in French instead of English	Prompt customization changed the language	Review the System Prompt — the default is in English. Add a language instruction if needed.

10. Microsoft Configuration

Purpose: Configure the credentials used to authenticate against the Microsoft Graph API to download raw call details. This is required for two features:

Downloading call details as JSON from the Call Overview page
AI Analysis (panel 9) — the AI needs raw call data from the Graph API to build context

When to configure this

You want to use the AI Analysis feature on the Call Overview page.
You need to download raw call records as JSON files for offline analysis.
You have an Azure AD app registration with the CallRecords.Read.All permission.

Prerequisites (Azure side)

Before configuring this panel, create an app registration in Azure AD:

Go to Azure Portal → App registrations → New registration.
Give it a name (e.g., MS Teams Observability).
Under Certificates & secrets, create a client secret.
Under API permissions, add Microsoft Graph → Application permissions → CallRecords.Read.All.
Click Grant admin consent.
Note the Tenant ID, Client ID, and Client secret.

Fields

Field	Required	Description	Default
Credential Name	Yes	Select a Dynatrace vault credential that stores the Azure AD client secret. Create a credential of type Username/Password — use the Client ID as the username and the client secret as the password. Or use Certificate if you prefer certificate-based auth.	None
Client ID	No	Azure AD application (client) ID. Leave empty if you stored it as the username in the vault credential above.	None
Tenant ID	Yes	Your Azure AD tenant ID (a GUID like `12345678-1234-1234-1234-123456789abc`). Found in Azure Portal → Azure Active Directory → Overview.	None
Grant Type	Yes	Authentication flow. Client Credentials for app-only access (recommended for backend services). Demo for testing without real credentials (only works with demo data).	`Client Credentials`
Scope	Yes	The OAuth2 scope for the Microsoft Graph API. The default `.default` scopes it to the permissions you granted in Azure AD. Only change this if you need a specific scope.	`https://graph.microsoft.com/.default`

How to set up the Credential Name (step by step)

In Dynatrace, go to Settings → Credentials.
Create a new credential of type Username/Password.
Username: paste your Azure AD Client ID.
Password: paste the client secret you created in Azure AD.
Give it a recognizable name (e.g., Azure Graph API).
Back in the Microsoft Configuration panel, select this credential in the Credential Name dropdown.

Validation

Indicator	Status	Message
Green	Valid	”Microsoft Configuration is valid”
Yellow	Testing	”Microsoft Configuration is being tested”
Red	Invalid	”No valid Microsoft Configuration detected”

Auto-validation runs on page load if all fields are saved. During validation, the app attempts an OAuth2 token exchange with login.microsoftonline.com.

Buttons

Button	When to use	What happens
Save	After entering or modifying any field	Persists the configuration. A success or failure toast appears.
Test	To verify the configuration works	Attempts to obtain an OAuth2 token from Microsoft. On failure, a detailed error toast helps diagnose the issue (invalid tenant, expired secret, wrong scope, etc.).
Reset	To clear all settings	Clears all fields. A confirmation toast appears.

Impact on other pages

Page	Effect when configured
Call Overview	Download button becomes enabled. AI Analysis becomes functional (Microsoft data is sent as context to the AI).

Troubleshooting

Symptom	Likely cause	Solution
”No valid Microsoft Configuration detected”	Incorrect tenant ID, client ID, or secret	Verify the vault credential contents and the Tenant ID. Use the Test button.
”Invalid tenant” error	Tenant ID is wrong	Check your Azure AD tenant ID in Azure Portal.
”Invalid client secret”	Secret expired or wrong	Go back to Azure Portal → App registration → Certificates & secrets, create a new secret, and update the vault credential.
”Insufficient privileges”	`CallRecords.Read.All` permission missing	Check the Azure AD app registration permissions. Ensure admin consent was granted.
Test works but AI doesn’t respond	AI Analysis not configured	Configure panel 9. Microsoft config alone is not sufficient.

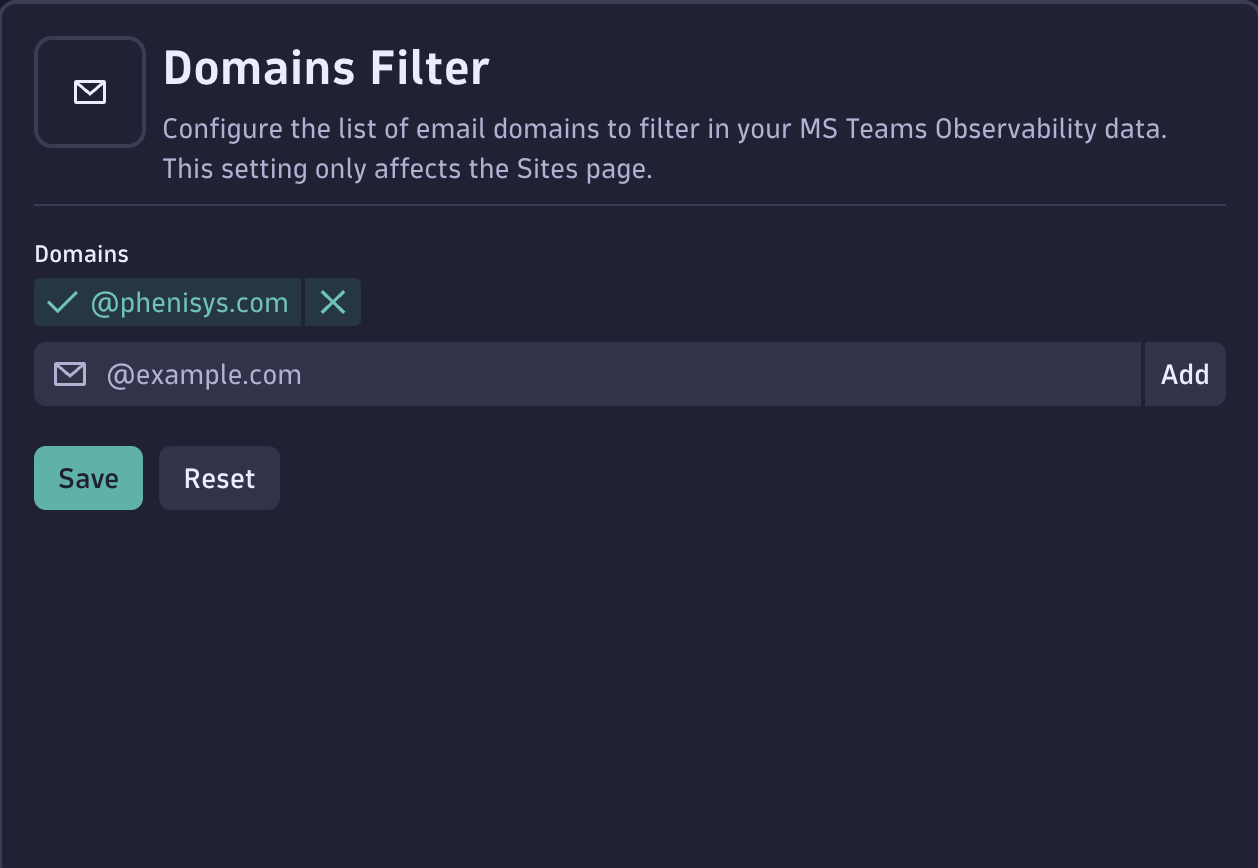

11. Domains Filter

Purpose: Configure a list of email domains to restrict the data shown on the Sites page. Only users whose email address ends with one of the configured domains are included in site-level analytics.

This is useful for:

Filtering out external participants (guests, vendors, customers) from your site analytics
Focusing on internal users only — the Sites page aggregates data per location, and external users can distort the picture
Multi-tenant setups where you want to isolate data per domain

When to configure this

You want the Sites page to show only internal users.
External participants (guests from other organizations) are common in your Teams calls.
Optional — the Sites page works without this, but you’ll see a warning toast reminding you to configure it.

How it works

The domain filter is applied at the DQL query level on the Sites page. Calls involving only external users (no matching domain) are excluded from site aggregations.

Setting	Behavior
No domains configured	All users included. Warning toast appears on the Sites page: “You should configure your domains.”
One or more domains	Only users with matching email domains are included in Sites analytics.

Format

Rule	Example
Each domain must start with `@`	`@mycompany.com` ✅
Subdomains are supported	`@sub.mycompany.com` ✅
Multiple domains can be added	`@mycompany.com`, `@mycompany.fr`, `@acquired-company.com`

How to add/remove domains

Add: Type the domain in the input field (e.g., @mycompany.com) and press Enter or click Add.
Remove: Click the × button on any domain chip.
Unsaved domains appear as neutral/white chips. Once saved, they turn green with a checkmark.

Buttons

Button	Description
Save	Persists the current domain list. Unsaved chips become saved (green).
Reset	Clears all domains (both saved and unsaved chips).

Impact on other pages

Page	Effect when configured
Sites	Only internal users (matching domains) are included in all analytics — map, NPA, call quality, network stats. If no domains are configured, a warning toast appears.
Calls	No direct effect — the filter only applies to Sites page aggregations.

Troubleshooting

Symptom	Likely cause	Solution
Sites page shows “Configure domains” warning	No domains configured	Add at least one domain and click Save.
Some users missing from Sites data	Their email domain isn’t in the list	Check that all relevant domains are added. External users (guests) won’t match internal domains by design.
Domain doesn’t match expected users	Format is wrong	Ensure the domain starts with `@` (e.g., `@company.com` not `company.com`).

12. Permissions

Purpose: View the effective permissions granted to the application based on the OAuth2 scopes configured for the Dynatrace app. This is a read-only diagnostic table — it shows which scopes the app has been granted and which are missing.

When to use this

The app isn’t loading data or shows permission errors.
You’re troubleshooting why a specific feature isn’t working.
After updating OAuth scopes in the Dynatrace app settings, to verify the changes took effect.

Permissions Table

The table lists all OAuth scopes declared by the app and their current status:

Column	Description
Name	The OAuth scope name (e.g., `storage:files:read`, `storage:files:write`). Hover shows the full scope string.
Granted	Status indicator: `True` (green) — the app has this permission. `False` (red) — the app does NOT have this permission. `Condition` (blue) — permission is conditional on additional context.
Comment	A human-readable description of what the scope is used for in the app.

The table is searchable — type in the Search permission… field to filter by scope name.

What scopes mean for functionality

Missing scope	Feature affected
`storage:files:read` / `write` / `delete`	Site File Management — cannot upload, read, or delete the sites CSV file
`storage:bucket-definitions:read`	Bucket Configuration — cannot check if the Grail bucket exists
`settings.read` / `settings.write`	OpenPipeline — cannot validate or generate the pipeline configuration
Grail query scopes	All data pages — cannot query call, site, user, or issue data

How to fix missing permissions

Go to Dynatrace → Apps → MS Teams Observability → Settings.
Under OAuth scopes, ensure all required scopes are checked.
Save the configuration.
Return to this panel and verify the scopes now show True.

Troubleshooting

Symptom	Likely cause	Solution
A scope shows `False`	The OAuth scope was not granted when the app was installed	Update the app’s OAuth scopes in Dynatrace app settings and re-authorize.
All scopes show `False`	The app doesn’t have permission to check its own scopes	This is a chicken-and-egg issue — contact your Dynatrace administrator.
Permission was granted but still shows `False`	Changes may take a few minutes to propagate	Wait 2-3 minutes and refresh the page.

Common Behaviors

Toast Notifications

All save, reset, and test operations provide feedback via toast notifications:

Operation	Success	Failure
Save	Green success toast	Red critical toast
Reset	Green success toast	Red critical toast
Test (valid)	Green success toast	—
Test (invalid)	—	Red critical toast with error details + Copy button

Auto-validation on Load

The following panels automatically test their configuration when the page loads (if credentials are already set):

Microsoft Configuration
AI Analysis
OpenPipeline
