Application — Call Overview
Path:
/CallOverview?callId=...&start=...&end=...

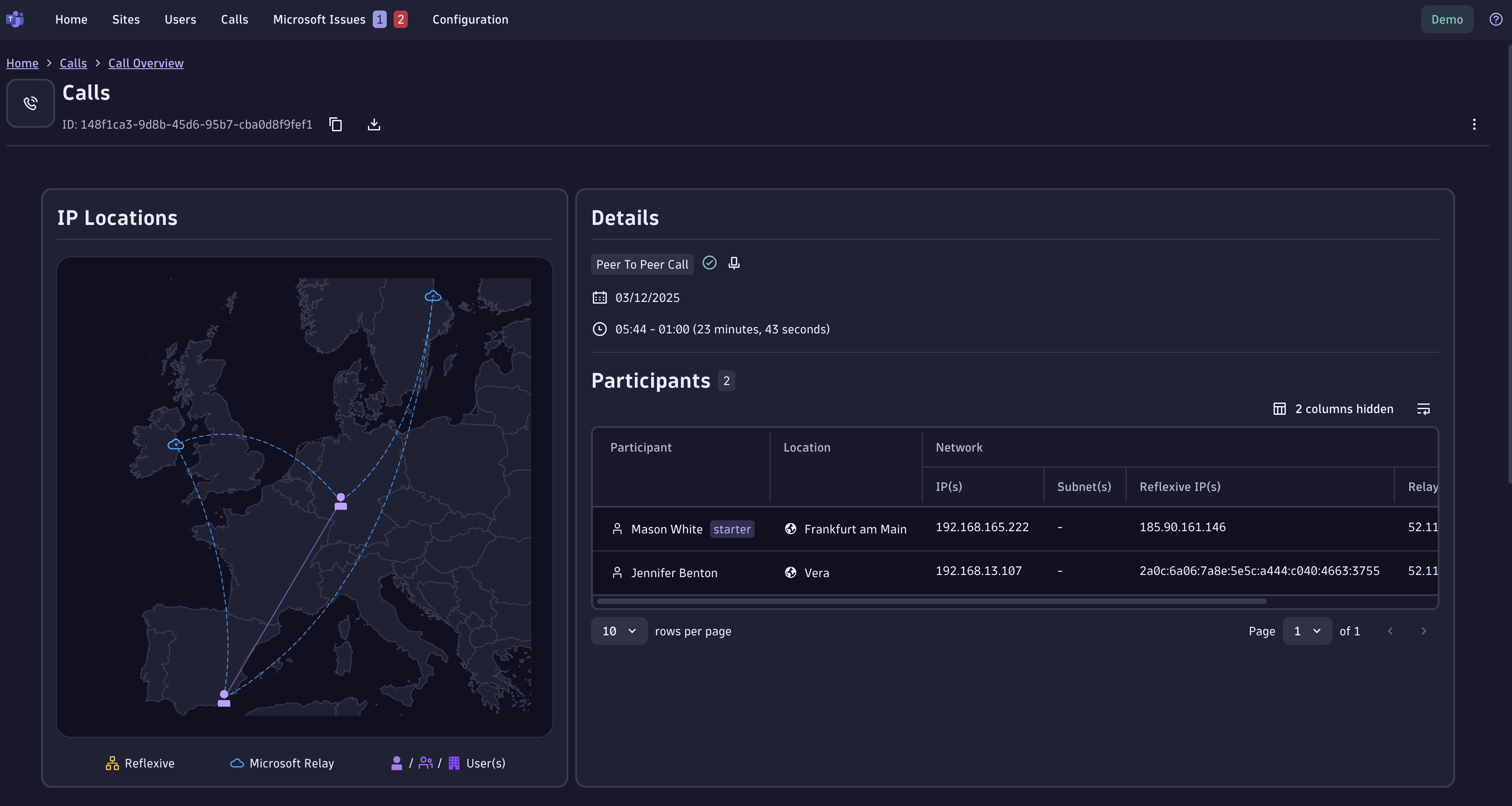

The Call Overview page provides a complete, detailed analysis of a single Microsoft Teams call. It shows who participated, where they were located, what the call quality was, stream-level metrics, and optionally an AI-generated root cause analysis.
Reach this page by clicking a call ID in the Calls page. Only calls with a duration > 0 have a clickable link.
Breadcrumb navigation: Home > Calls > Call Overview
URL Parameters (required)
Section titled “URL Parameters (required)”| Parameter | Description | Example |
|---|---|---|
callId | The unique identifier of the call | abc123-... |
start | ISO8601 timestamp — call start minus 10 minutes | 2024-01-15T09:50:00.000Z |
end | ISO8601 timestamp — call end plus 10 minutes | 2024-01-15T10:40:00.000Z |
If any parameter is missing, an error state is displayed instead of call data.
Page Header
Section titled “Page Header”The header shows the call ID with two actions:
| Action | Description |
|---|---|
| Copy button | Copies the call ID to the clipboard |
| Download button | Downloads the full call details as a JSON file |
| Three-dot menu | Contains “Download call details” as a menu item |
Error State
Section titled “Error State”If callId, start, or end is missing from the URL:
- Title: “Error”
- Details: “Call ID, start time, or end time is missing.”
- Action button: “Go to Calls” — navigates back to the Calls page
Section 1: Map + Details Panel

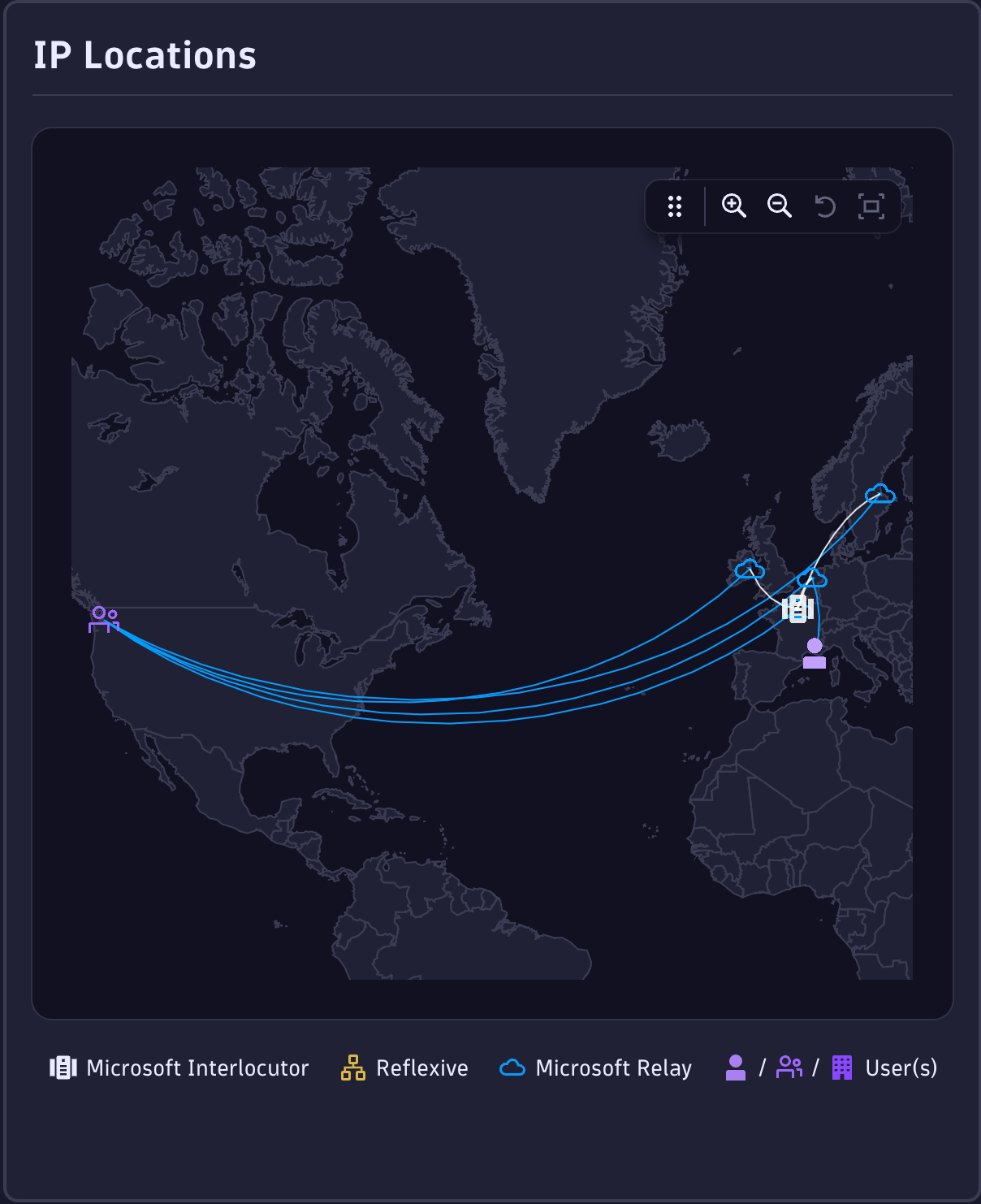

Section titled “Section 1: Map + Details Panel”Call Map (40% width)
Section titled “Call Map (40% width)”A geographic map showing participant locations and the network topology of the call. Each participant is plotted based on their site location or public IP geolocation. Connections between participants are drawn to visualize the call topology.

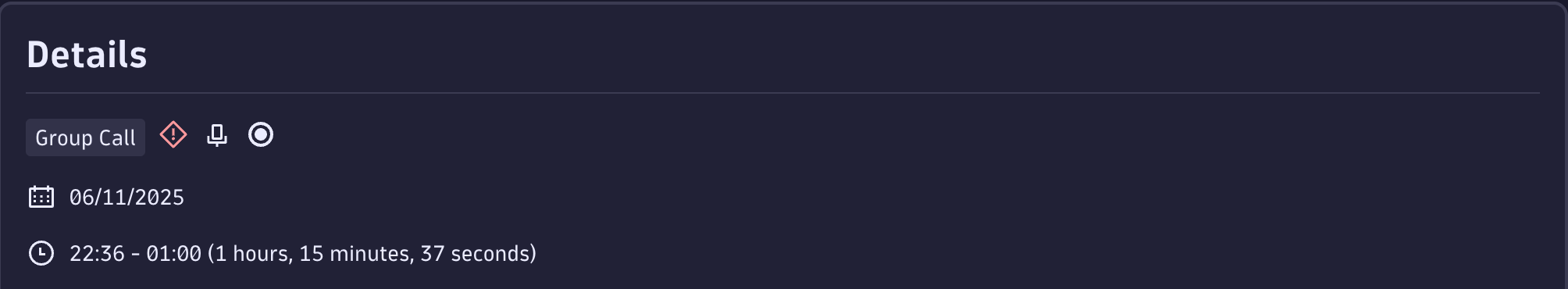

Call Details Panel (60% width)
Section titled “Call Details Panel (60% width)”Call metadata row:
| Element | Description |
|---|---|
| Call type chip | ”Group Call” or “Peer To Peer Call” |
| Health indicator | Color-coded icon: Good (green) / Poor (red) / Unknown (grey) |
| Audio icon | Shown if the call had an audio stream |
| Video icon | Shown if the call had a video stream |
Date and time:
| Field | Format |
|---|---|
| Date | DD/MM/YYYY |
| Time | HH:MM → HH:MM (HH:MM:SS duration) |
Participants section:
Shows the total participant count in a chip. If the participant count from call details does not match the stream data, a warning icon appears with a tooltip explaining the discrepancy.

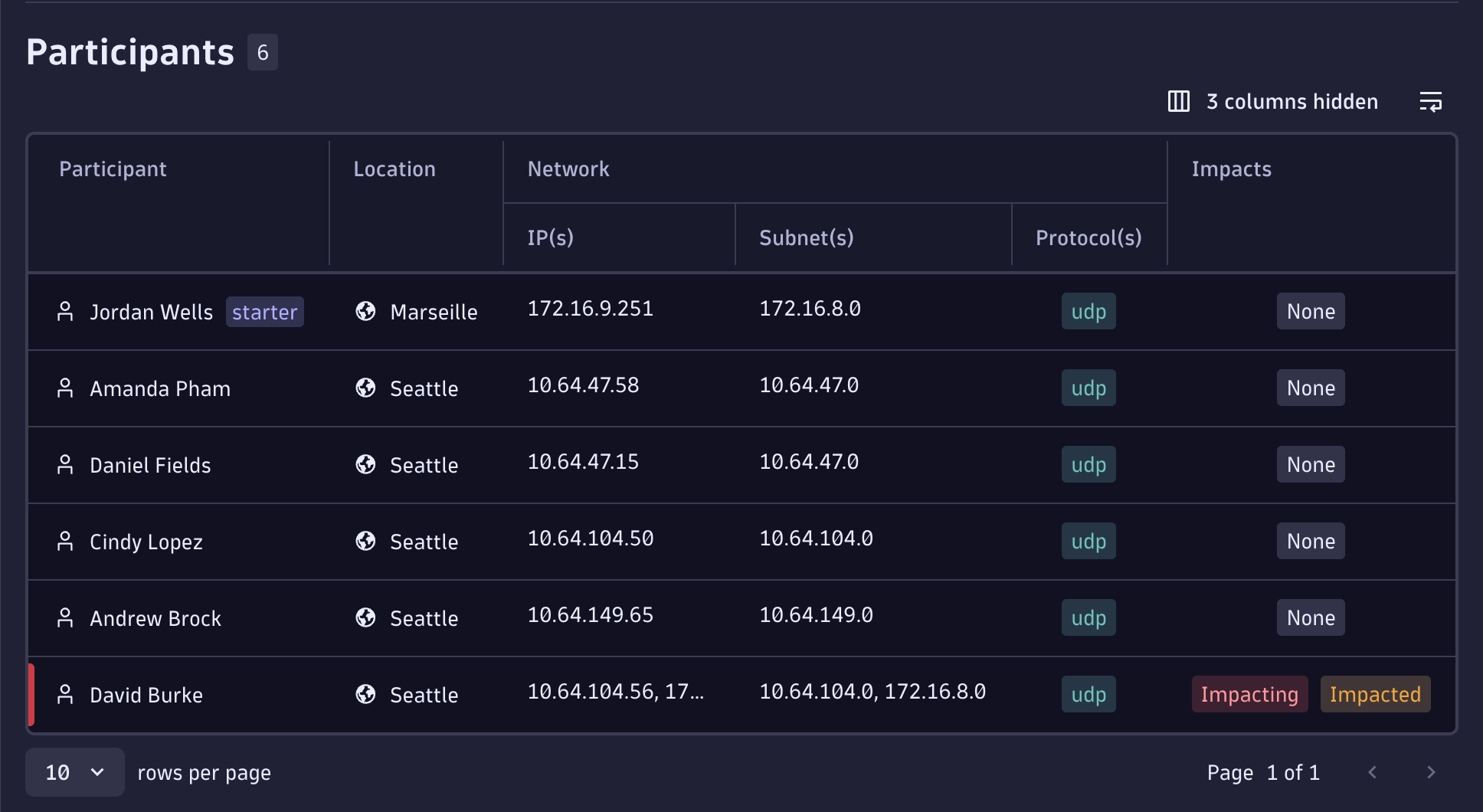

Participant Table
Section titled “Participant Table”| Column | Description |
|---|---|
| Participant | Name. Icon indicates internal (filled) vs external (outline). “starter” chip marks the call initiator. |
| Location | Resolved from site mapping (building icon), public IP geolocation (globe icon), or “Unknown”. Guest users always show “Unknown”. |
| Email address (hidden by default) | |
| Network › IP(s) | IP addresses used across all streams |
| Network › Subnet(s) | Subnets observed |
| Network › Reflexive IP(s) | External/reflexive IPs |
| Network › Relay IP(s) | Media relay IPs |
| Network › Protocol(s) | Transport protocols used (UDP = green, TCP = red) |
| Impacts | ”Impacting” (red — sending bad streams) / “Impacted” (yellow — receiving bad streams) / “None” (grey) |
Row color coding: rows where any stream has Poor quality are highlighted in red.
Cell actions (right-click): Copy cell value (Participant and Mail columns).
Table controls: column visibility, ordering, line wrap, pagination (10/20/50/100 per page).

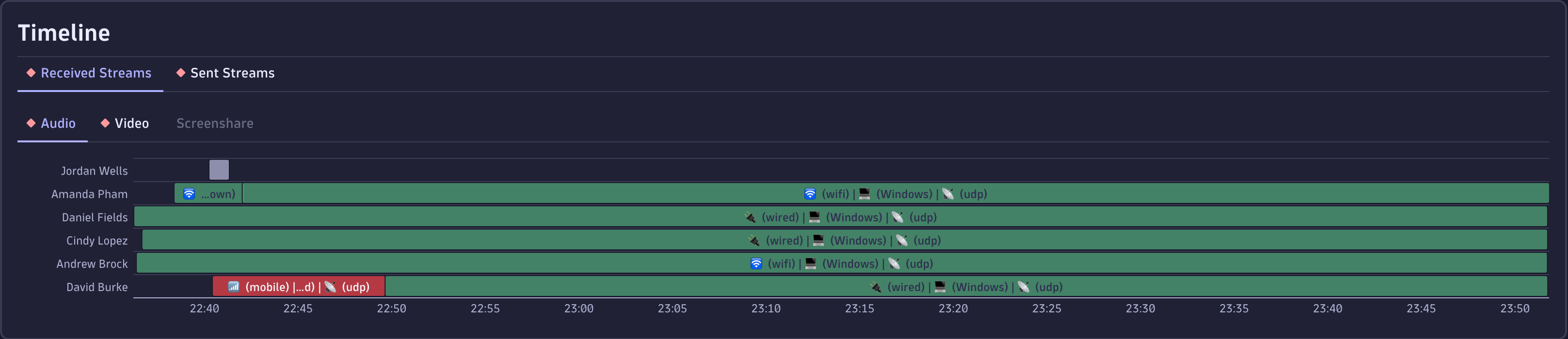

Section 2: Timeline
Section titled “Section 2: Timeline”A visual timeline of the call showing state changes and quality metric transitions over the call’s duration. Events such as participant joins/leaves are marked on the timeline.

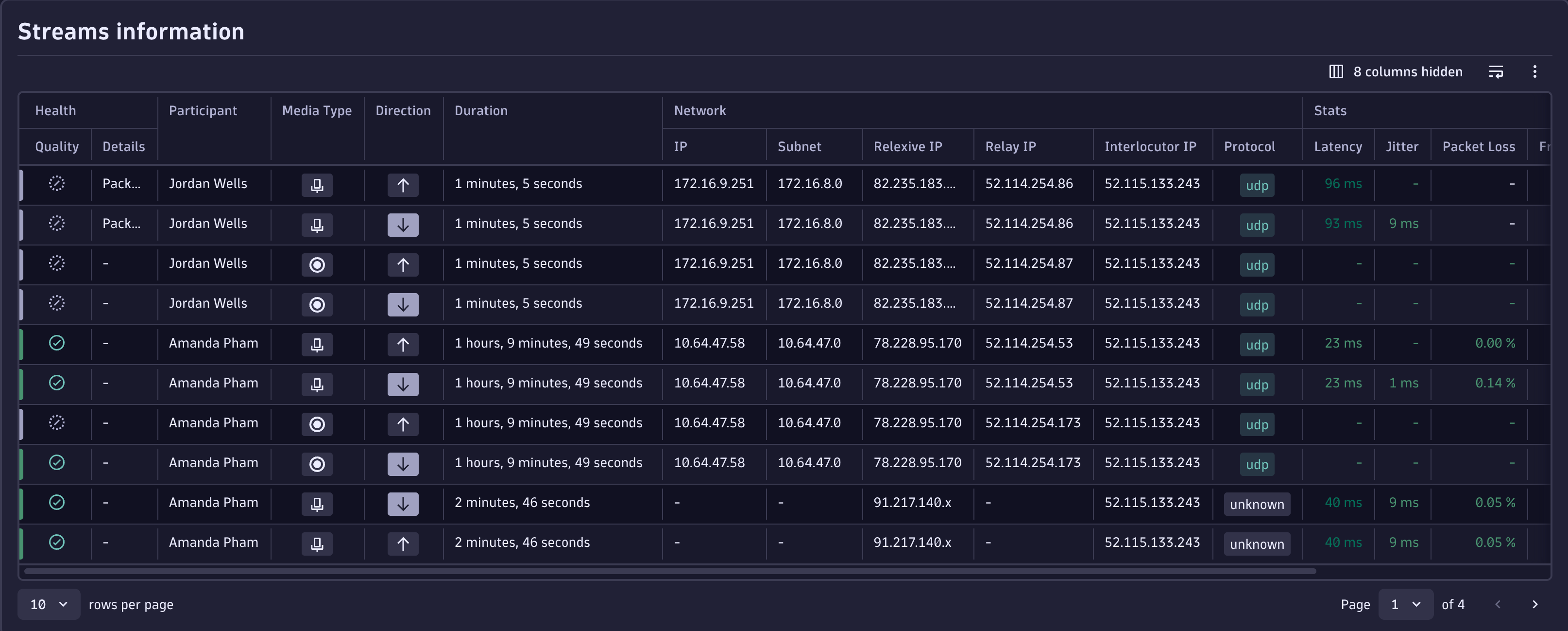

Section 3: Streams Information
Section titled “Section 3: Streams Information”A detailed table where each row represents one media stream (audio, video, or screen share) from one participant.
Row color coding:
- Green pill — Good quality stream
- Red pill — Poor quality stream
- Grey pill — Unclassified stream
- Grey highlight — Stream with duration ≤ 0
Default hidden columns: Cause, Start, End, Screen Share Codec, Device Name, CPU, Client Version, Client Family.
Health group
Section titled “Health group”| Column | Description |
|---|---|
| Quality | Good (green) / Poor (red) / Unclassified (grey) |
| Cause | Root cause of poor quality (hidden by default) |
| Details | Additional detail on the cause (hidden by default) |
Identity columns
Section titled “Identity columns”| Column | Description |
|---|---|
| Participant | Name of the participant |
| Media Type | Audio (speaker icon) / Video (target icon) / Screen Share (desktop icon) |
| Direction | Receiving (down arrow) or sending (up arrow) |
| Start | Stream start timestamp (hidden by default) |
| End | Stream end timestamp (hidden by default) |
| Duration | Stream duration (HH:MM:SS) |
Network group
Section titled “Network group”| Column | Description |
|---|---|
| IP | Local IP address |
| Subnet | Network subnet |
| Reflexive IP | External IP (NAT traversal) |
| Relay IP | Media relay server IP |
| Interlocutor IP | IP of the remote party (group calls) |
| Protocol | UDP (green) / TCP (red) / other (grey) |
Stats group
Section titled “Stats group”| Column | Unit | Notes |
|---|---|---|
| Latency | ms | Color-coded by quality thresholds |
| Jitter | ms | Color-coded by quality thresholds |
| Packet Loss | % | Shown as X.XX % |
| Framerate | fps | Shown as X fps |
Device group
Section titled “Device group”| Column | Description |
|---|---|
| Name | Device/host name (hidden by default) |
| CPU | Processor information (hidden by default) |
| Platform | Windows, macOS, iOS, Android, Web |
| Connection Type | wired, wifi, etc. |
Client group
Section titled “Client group”| Column | Description |
|---|---|
| Version | MS Teams client version (hidden by default) |
| Family | Client family/type (hidden by default) |
Cell actions (right-click)
Section titled “Cell actions (right-click)”- Copy value
- IP columns (IP, Subnet, Reflexive IP, Relay IP, Interlocutor IP):
- Public IPs: “Lookup IP” — opens
ip-api.com - Private IPs (IPAM configured): “Lookup IPAM” — opens your IPAM solution
- Private IPs (no IPAM): “Configure IPAM link” — links to Configuration page
- Public IPs: “Lookup IP” — opens
Toolbar actions
Section titled “Toolbar actions”- Column visibility, ordering, line wrap
- Download data — exports the stream table
- Open in notebook — opens the query in Dynatrace Notebooks
- Open with… — opens the query in another Dynatrace app

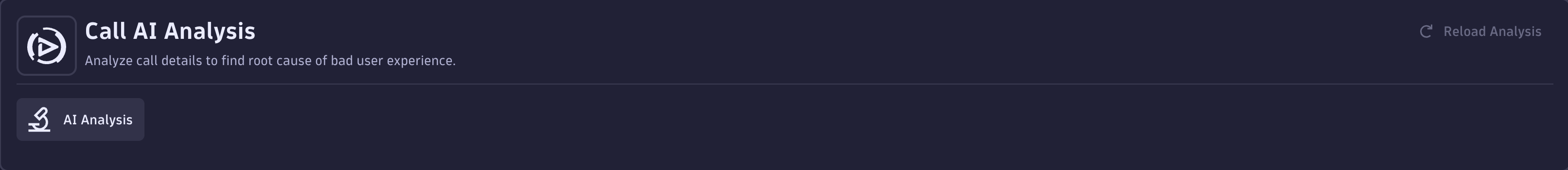

Section 4: Call AI Analysis
Section titled “Section 4: Call AI Analysis”An AI-powered section that analyzes stream data to identify the root cause of quality issues.
States:
| State | What you see |
|---|---|
| Not yet analyzed | ”AI Analysis” button |
| Analysis in progress | Loading spinner |
| Result available | Markdown-formatted analysis text |
| Cached result | Previously generated analysis loaded automatically |
Buttons:
| Button | Enabled when | Description |
|---|---|---|
| AI Analysis | MS credentials + AI tool configured | Triggers a new analysis. Results are cached per call ID. |
| Reload Analysis | Result exists + both configs valid | Re-generates the analysis, overwriting the cache |

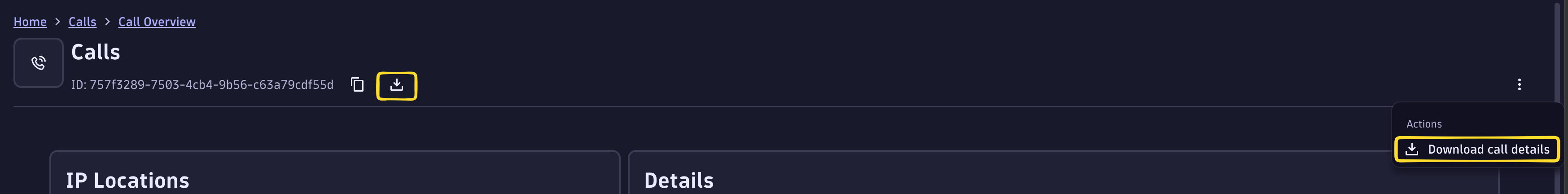

Download Call Details
Section titled “Download Call Details”Clicking the Download button (or via the three-dot menu) downloads the full raw call data from the Microsoft Graph API as a JSON file.
Filename: call-details-{callId}.json
During download, a toast notification with a progress bar appears. Concurrent downloads are blocked with a warning toast.
