The Sites page lets you analyze Microsoft Teams call quality and network performance aggregated by geographic location. Each row in the tables represents a site (a named location associated with one or more network subnets).
Breadcrumb navigation: Home > Sites
Page Header
Section titled “Page Header”The header includes a menu (three-dot icon) with two actions:
| Action | Description |
|---|---|
| Show NPA Guide | Opens a panel explaining how NPA (Network Performance Assessment) scoring works |
| Go to Microsoft Documentation | Opens the official Microsoft network quality documentation |
Filter Bar
Section titled “Filter Bar”Filter Field
Section titled “Filter Field”An advanced filter input with real-time type-ahead suggestions.
Available filter keys:
| Key | Type | Description |
|---|---|---|
location | String | Site location name |
country | String | Country code or name |
subnet | CIDR | Network subnet (e.g., 10.64.0.0/24) |
npaStatus | Enum | NPA compliance status |
streamCount | Number | Total number of streams |
goodStreamCount | Number | Number of good streams |
poorStreamCount | Number | Number of poor streams |
unclassifiedStreamCount | Number | Number of unclassified streams |
callCount | Number | Total number of calls |
goodCallCount | Number | Number of good calls |
poorCallCount | Number | Number of poor calls |
unclassifiedCallCount | Number | Number of unclassified calls |
usersCount | Number | Total number of users |
jitterIn / jitterOut / jitterOverall | Number (ms) | Jitter values |
rttIn / rttOut / rttOverall | Number (ms) | Round-trip time |
packetLossIn / packetLossOut / packetLossOverall | Number (%) | Packet loss |
videoFramerateIn / videoFramerateOut / videoFramerateOverall | Number (fps) | Video framerate |
Valid values for npaStatus: compliant, uncompliant, undetermined
String operators: =, !=, ~, !~, in (), not in ()
Numeric operators: =, !=, >, >=, <, <=
The filter is stored in the URL (?filter=...).
Timeframe
Section titled “Timeframe”Preset time range selector. Default: last 2 hours. Stored in URL as ?from=...&to=....
Include Unmapped
Section titled “Include Unmapped”Controls whether sites without a configured location mapping are included.
| Value | Behavior |
|---|---|
| Yes | Includes unmapped network segments |
| No (default) | Excludes unmapped entries |
Stored in URL as ?includeUnmapped=true/false.
Update Button
Section titled “Update Button”Applies the current filter and timeframe. Re-fetches if no change was made.
Reset Button
Section titled “Reset Button”Clears all filters and resets the timeframe to the default (last 2 hours) and Include Unmapped to true.
Section 1: Network Performance Assessment (NPA)

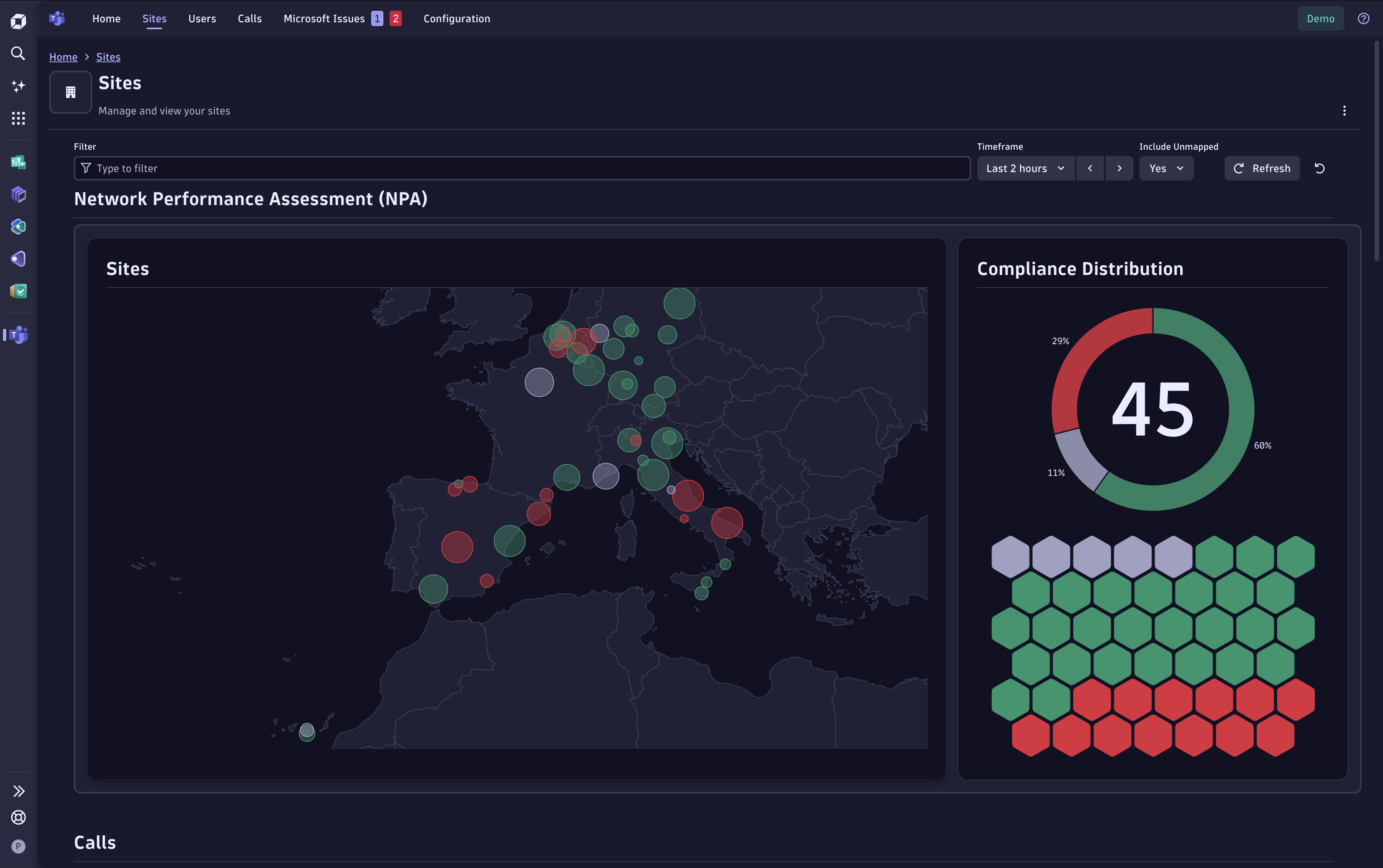

Section titled “Section 1: Network Performance Assessment (NPA)”NPA Map (70% width)

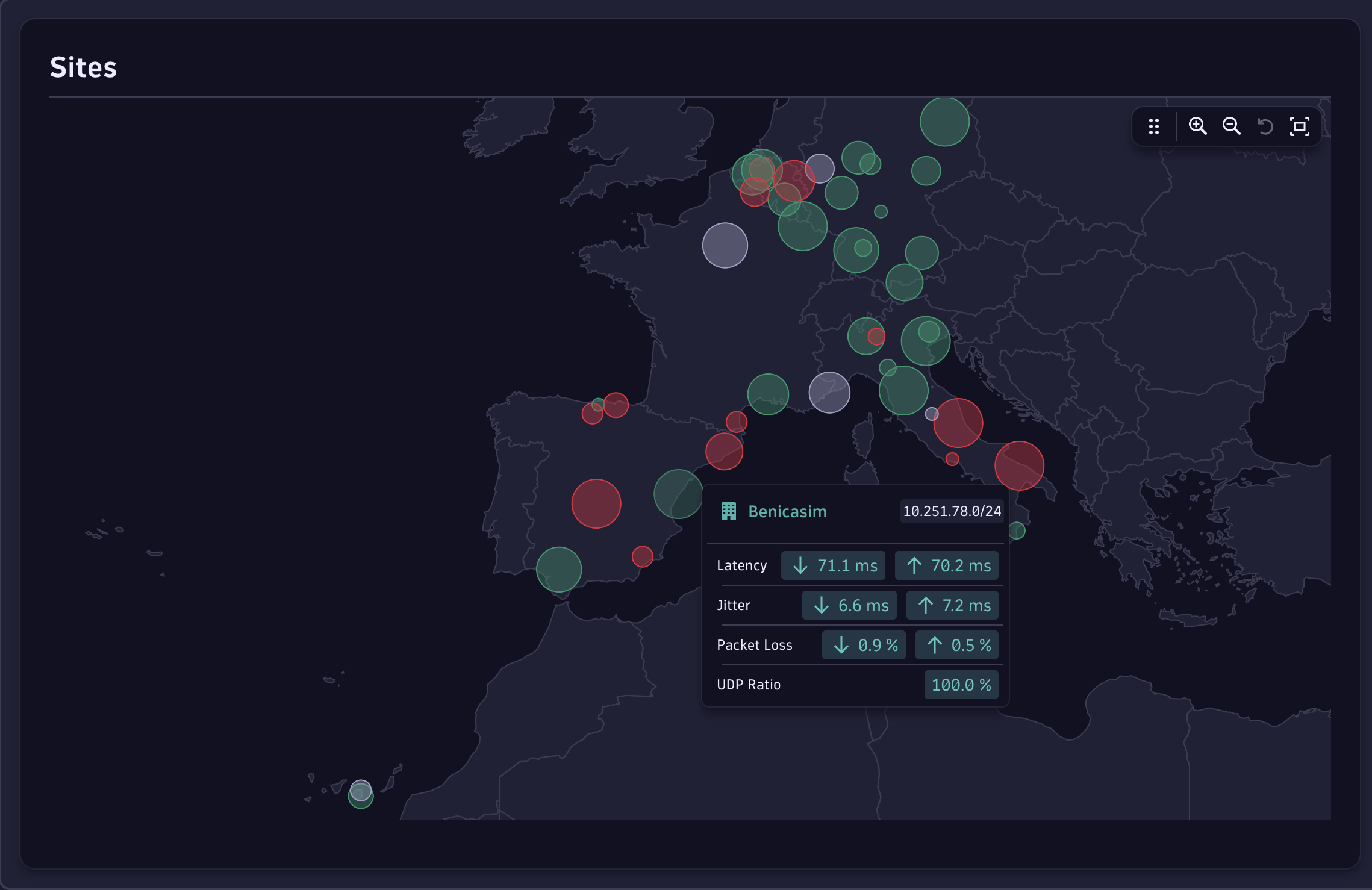

Section titled “NPA Map (70% width)”A geographic map showing all sites color-coded by NPA compliance status:
| Color | Status | Meaning |
|---|---|---|
| Green | Compliant | Site meets Microsoft’s network quality thresholds |
| Red | Uncompliant | Site does not meet thresholds |
| Grey | Undetermined | Not enough data to classify |

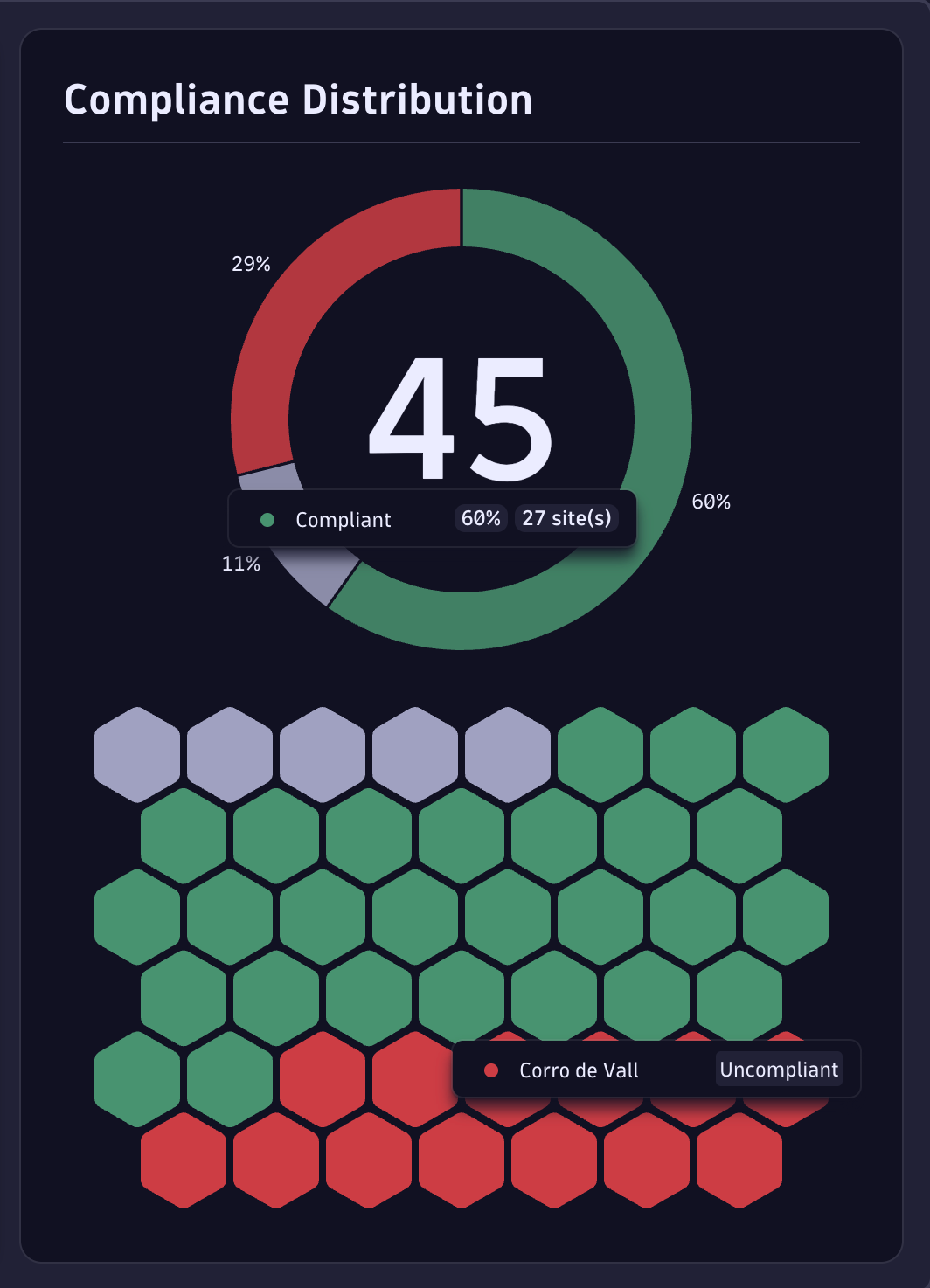

NPA Compliance Distribution Chart (30% width)
Section titled “NPA Compliance Distribution Chart (30% width)”A pie chart showing the proportion of sites in each NPA status.

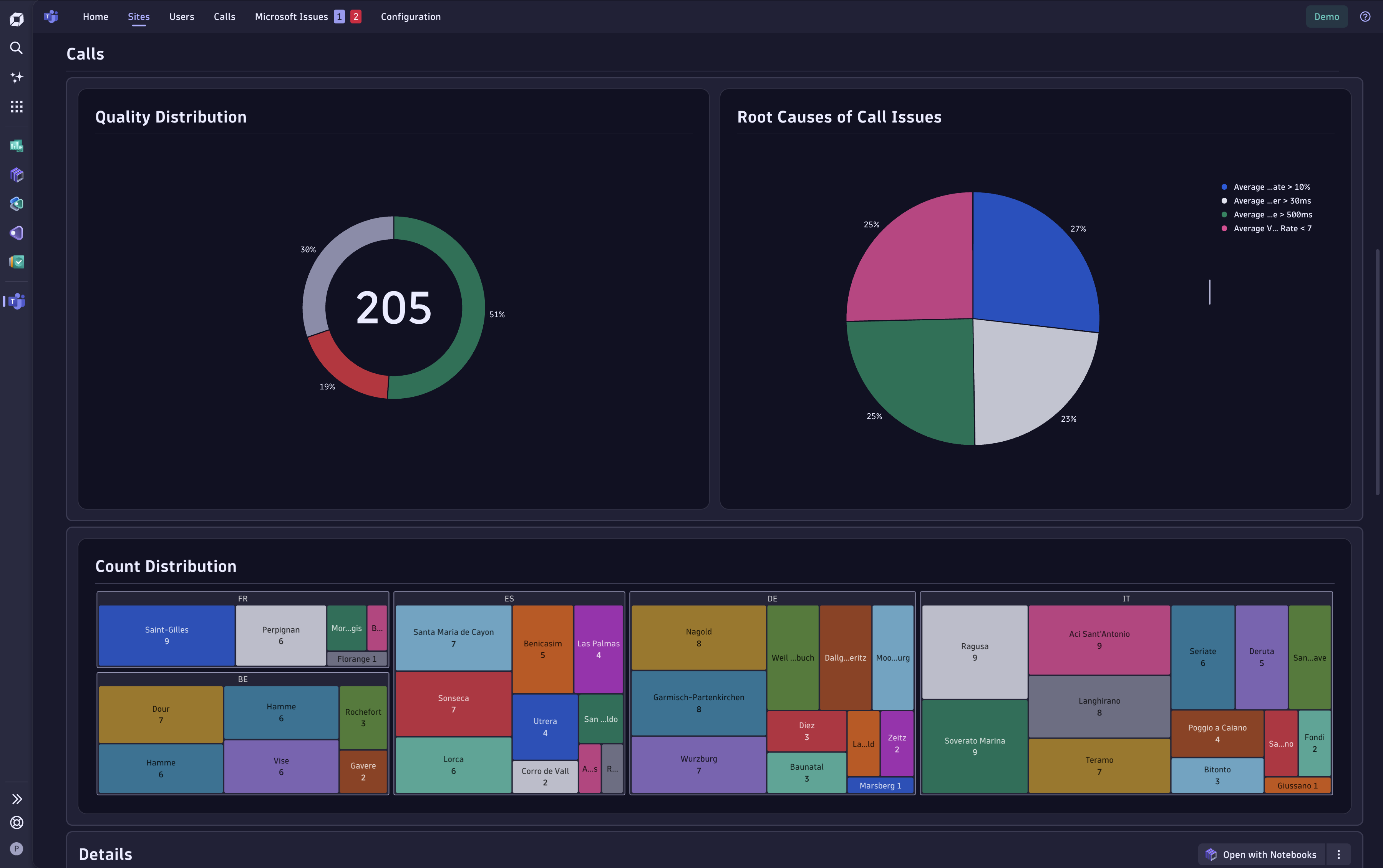

Section 2: Calls

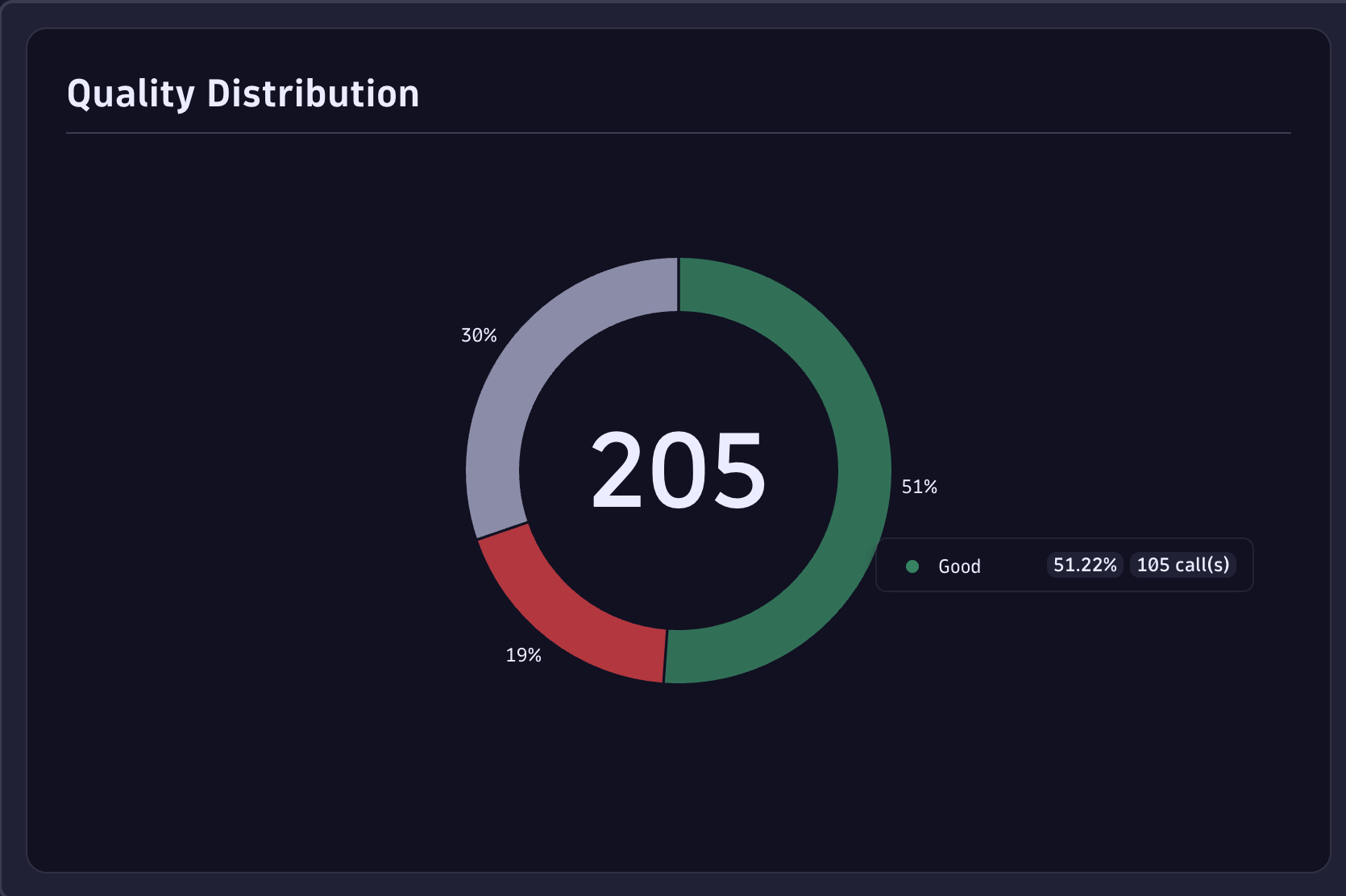

Section titled “Section 2: Calls”Call Quality Distribution Chart (50% width)
Section titled “Call Quality Distribution Chart (50% width)”Distribution of call quality (Good / Poor / Unclassified) across all sites.

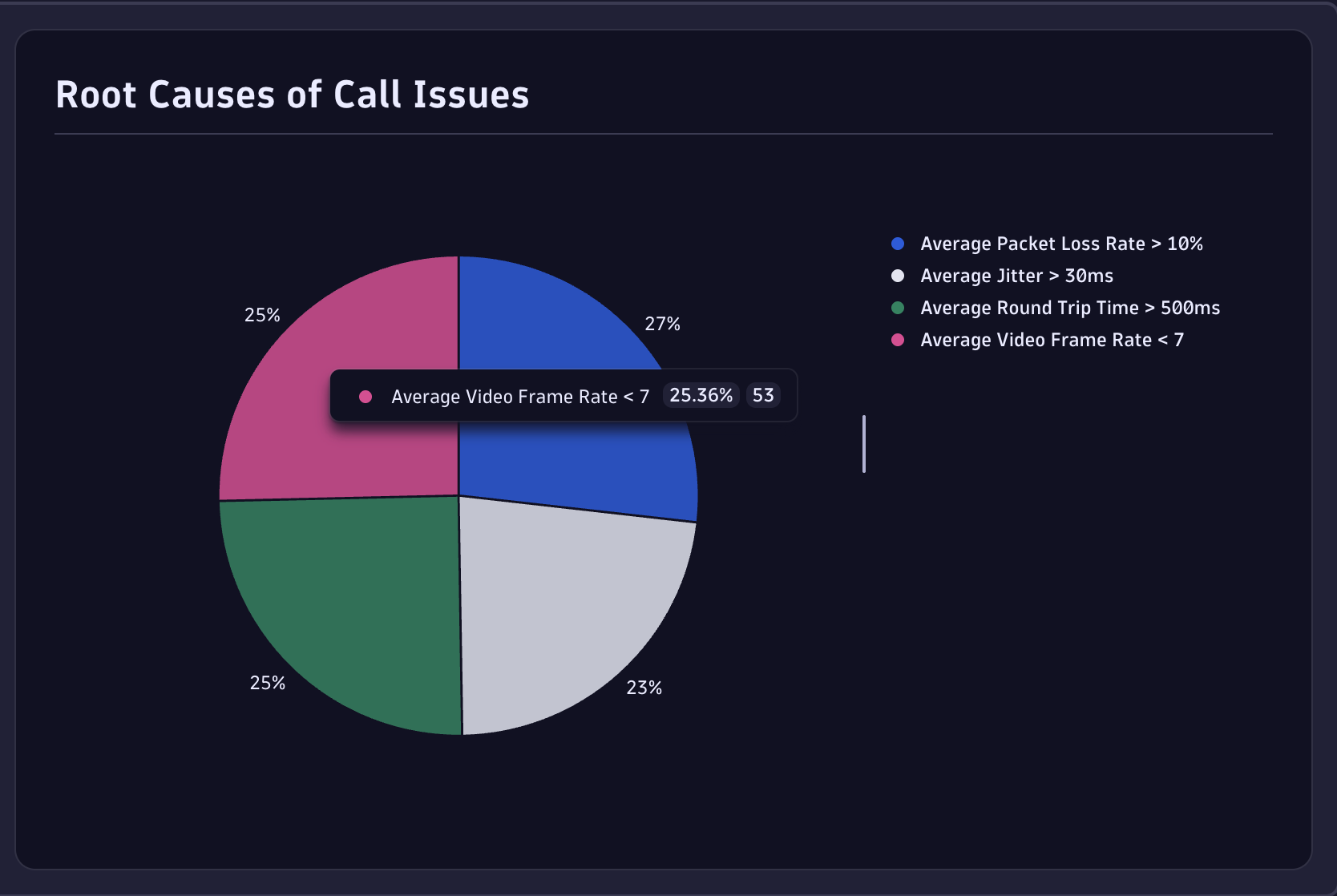

Issues Causes Chart (50% width)
Section titled “Issues Causes Chart (50% width)”A pie chart breaking down the root causes of poor call quality (e.g., packet loss, jitter, latency).
Call Distribution by Site Chart
Section titled “Call Distribution by Site Chart”A bar chart showing call volume broken down by site.

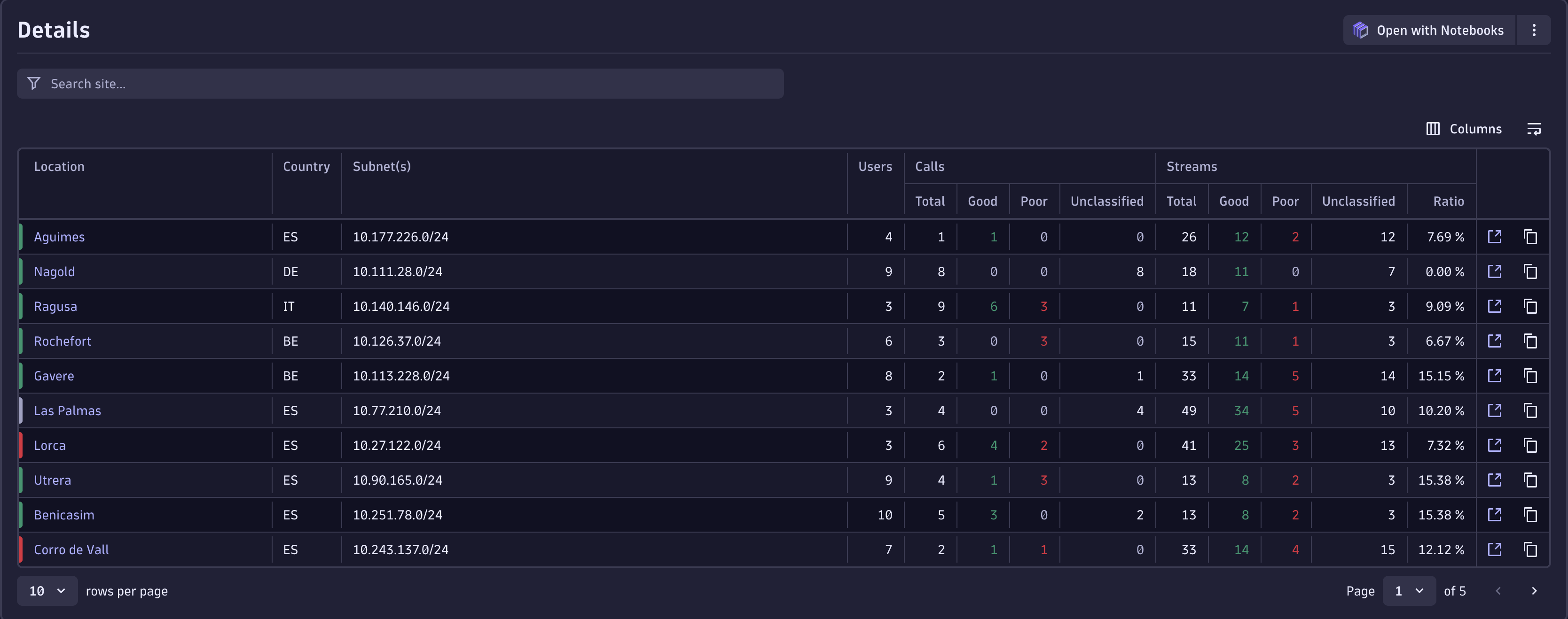

Calls Details Table
Section titled “Calls Details Table”A sortable, paginated table of all sites with call and stream statistics.
Search Filter
Section titled “Search Filter”A text input filtering visible rows by location name, country, or subnet (client-side — no re-query).
Identity Columns
Section titled “Identity Columns”| Column | Sortable | Description |
|---|---|---|
| Location | Yes | Site name. Clicking navigates to Calls pre-filtered for that location. |
| Country | Yes | Country associated with the site |
| Subnet(s) | Yes | Network subnet(s), sorted numerically |
Summary Column
Section titled “Summary Column”| Column | Sortable | Description |
|---|---|---|
| Users | Yes | Total unique users from this site |
Calls Group
Section titled “Calls Group”| Column | Sortable | Color coding |
|---|---|---|
| Total | Yes | Neutral |
| Good | Yes | Green when > 0 |
| Poor | Yes | Red when > 0 |
| Unclassified | Yes | Neutral |
Streams Group
Section titled “Streams Group”| Column | Sortable | Description |
|---|---|---|
| Total | Yes | Total audio/video streams |
| Good | Yes | Green when > 0 |
| Poor | Yes | Red when > 0 |
| Unclassified | Yes | Neutral |
| Ratio | Yes | Percentage of poor streams (e.g., 12.50 %), red when > 0 |
Row color-coding (NPA status): Compliant = green accent, Uncompliant = red accent, Undetermined = grey accent.
Row Actions (on hover)
Section titled “Row Actions (on hover)”| Action | Description |
|---|---|
| External link icon | Navigates to Calls filtered by that location |
| Copy button | Copies the full row data as JSON |
Cell Actions (right-click)
Section titled “Cell Actions (right-click)”- Copy — copies the cell value
- Add filter (text columns: Location, Country, Subnet):
=or!= - Add filter (numeric columns):
<,<=,=,>=,>,!= - Lookup IPAM (Subnet column): opens IP in your IPAM solution; links to Configuration if not configured
- View calls for this site — navigates to Calls filtered for this location
Table Controls
Section titled “Table Controls”| Control | Description |
|---|---|
| Column visibility | Show/hide individual columns |
| Column order | Drag to reorder |
| Line wrap | Toggle text wrapping |
| Pagination | 10 / 20 / 50 / 100 rows per page |
Open with Notebooks
Section titled “Open with Notebooks”Sends the current query to Dynatrace Notebooks for deeper DQL exploration.

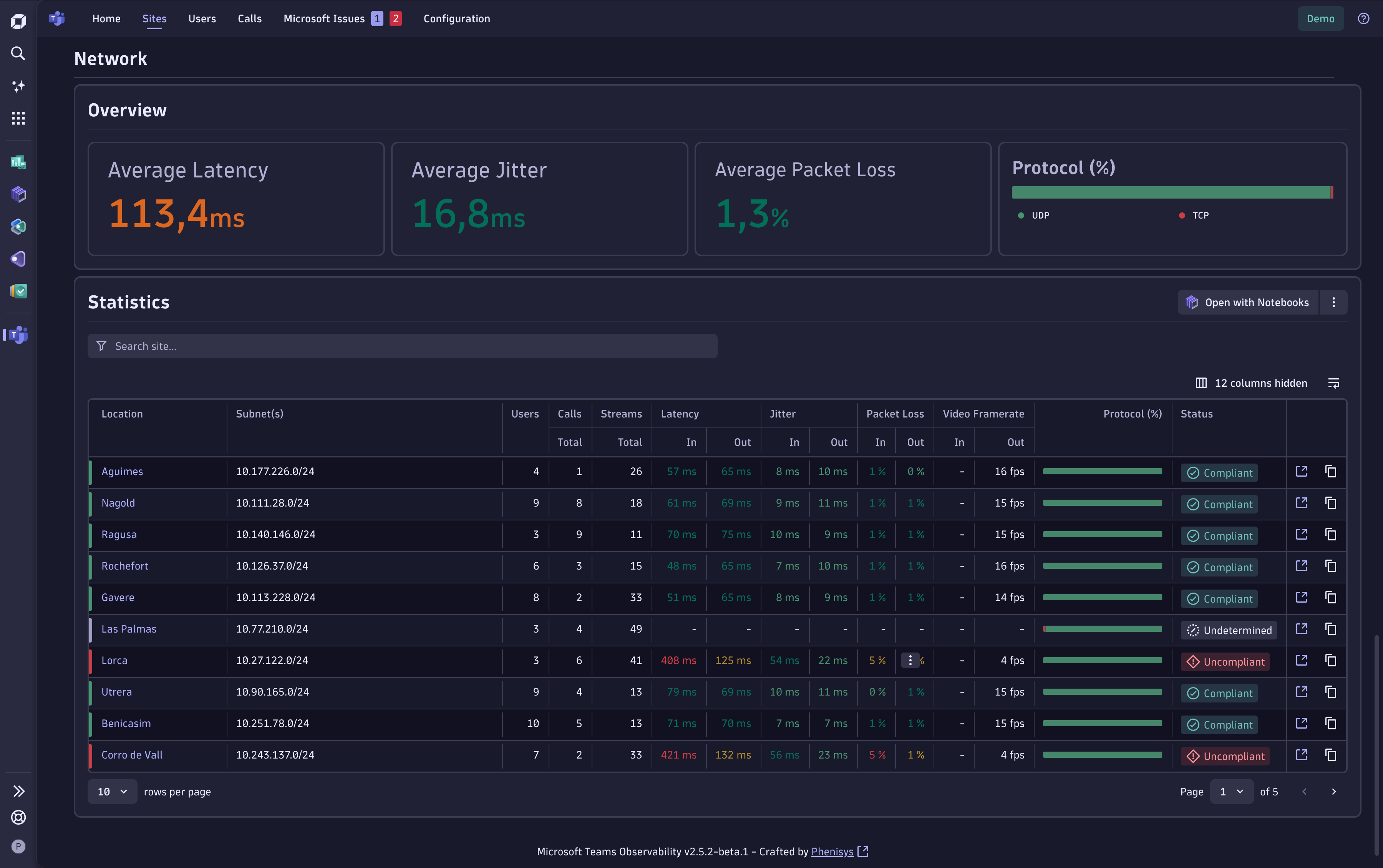

Section 3: Network

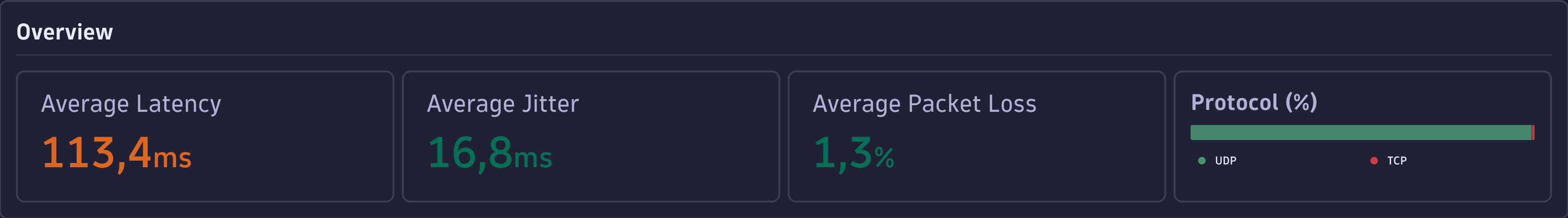

Section titled “Section 3: Network”Network Overview (4 metric tiles)
Section titled “Network Overview (4 metric tiles)”| Tile | Unit | Description |
|---|---|---|
| Average Latency | ms | Average round-trip time across all sites |
| Jitter | ms | Average jitter |
| Packet Loss | % | Average packet loss |
| Protocol | — | Most common protocol in use |
Values are recalculated when the search filter changes.

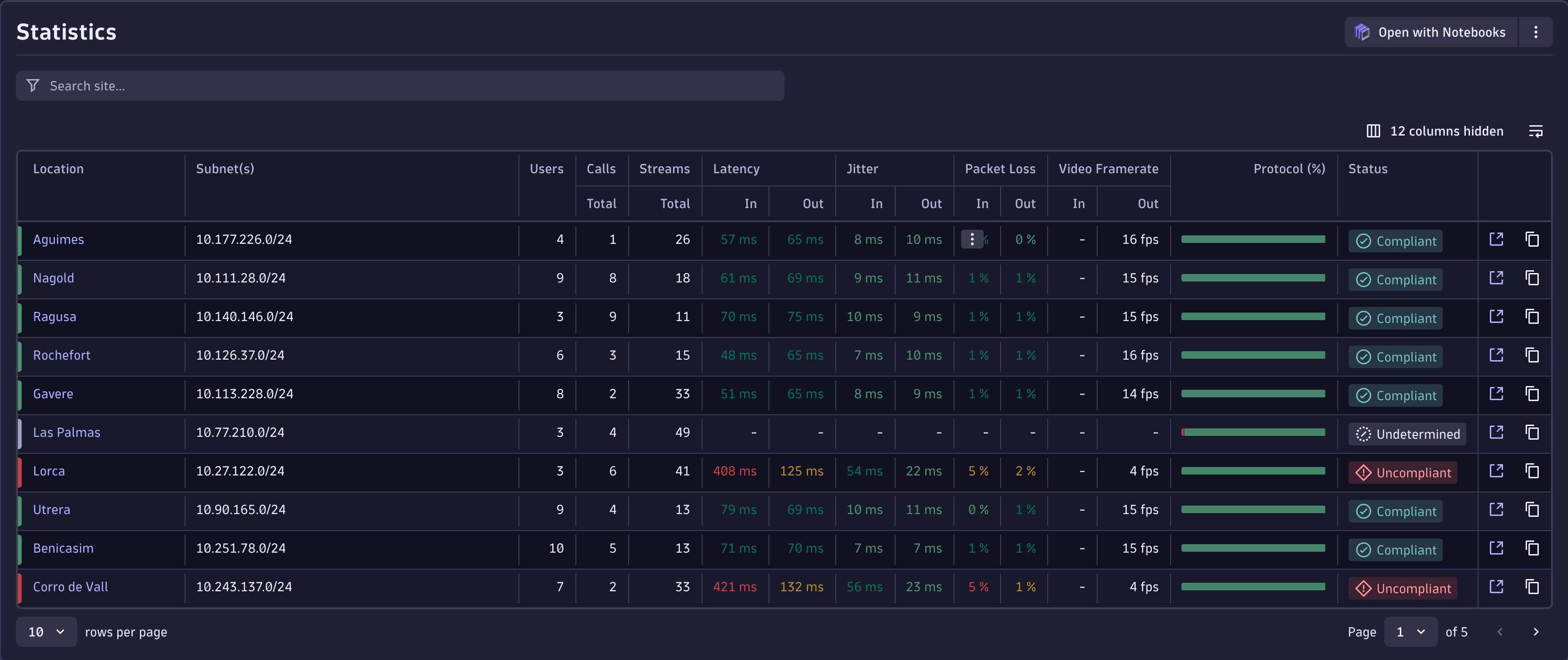

Network Statistics Table
Section titled “Network Statistics Table”A sortable table of sites with detailed network metrics. Shares the same search filter as the Calls Details table. An Open with Notebooks button is also available above this table.
URL Parameters
Section titled “URL Parameters”| Parameter | Description | Example |
|---|---|---|
filter | Advanced filter expression | location = "Paris" |
from | Timeframe start | now()-2h |
to | Timeframe end | now() |
includeUnmapped | Include unmapped locations | true / false |
Empty / Error States
Section titled “Empty / Error States”| Situation | What you see |
|---|---|
| Loading | Spinner in each section |
| No sites configured | Empty tables |
| Filter matches nothing | Tables show 0 rows |
| Domain filter not configured | Warning toast with link to Configuration |
